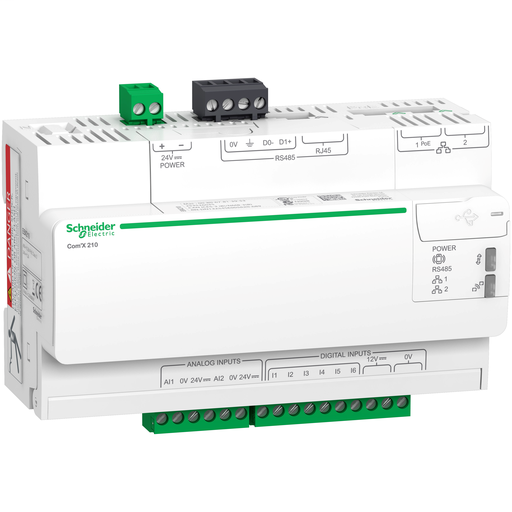

ComX 210 – data logger – UL
This device is a gateway with data logger that can collect information from up to 64 field devices. ComX devices collect energy data throughout the building, from electrical distribution devices (meters, switchgear) and smart panels. Part of EcoStruxure, the web service provide user interface for reporting and information. They deliver the data on local area network (LAN) to enable Smart displays: dashboards, historical graph charts, etc. An Entry Level Energy Management System with comprehensive views of energy consumption, enabling energy efficiency actions. Can be connected to network through Ethernet, or with optional WiFi or GPRS. It received IEC60950 and UL508 certification. Wide control power range from a 24VDC source or even a Power of Ethernet 15.4 Watt DC. The gateway can be DIN rail mounted in a modular enclosure. Product dimensions are as follows: width 144 millimetres, depth 65.8 millimetres, height 91 millimetres and product weight 450 g.
Add to Quote CatalogueSpecifications
| Part Number | EBX210 |
|---|---|
| Country of Origin | DE |
| UPC | 785901433309 |
| UPC11 | 78590143330 |
| EAN | 3606480736087 |
| Availability | N |
| Lead Time | 3 |
| UNSPSC | 40151552 |
| HTs Code | 8517620090 |
| Prop 65 | This product can expose you to chemicals which are known to the State of California to cause Carcinogen and Reproductive harm.For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | PL1 |
| Return Indicator | Yes |
| Depth | 2.72 inch |
| Height | 4.29 inch |
| Width | 5.67 inch |
| Weight | 15.87 ounce |
Characteristics
| Range | PowerLogic |
|---|---|
| Product Name | ComX |
| Product Or Component Type | Energy server |
| Device Short Name | ComX 210 |
| [Us] Rated Supply Voltage | Main supply 24 V DC |
| Power Consumption In W | 26 W 24 V 15 W via PoE |
| Communication Network Type | RS485, Modbus serial 1 RJ45 RS485, Modbus serial terminal block Ethernet, PoE 15W (Power over Ethernet) 1 RJ45 Ethernet, DHCP 1 RJ45 |
| Number Of Inputs | 6 digital 2 analog |
| Discrete Input Current | 60 mA 12 V DC |
| Sensor Power Supply | 24 V DC 50 mA |
| Analogue Input Type | 4...20 mA Pt 100 Pt 1000 0...10 V |
| Communication Gateway | Ethernet TCP/IP to Modbus |
| Memory Capacity | 128 MB RAM 256 MB flash |
| Mounting Mode | Clip-on |
| Mounting Support | 35 mm DIN rail |
| Product Certifications | CE CUL C-tick UL |
| Standards | EN 61010-1 UL 508 EN 60950 UL 60950 |
| Depth | 2.72 in (69 mm) |
| Height | 4.29 in (109 mm) |
| Width | 5.67 in (144 mm) |
| Product Weight | 15.87 oz (450 g) |
| Local Signalling | LED:power supply LED:status GPRS) LED:communication Modbus) LED:communication Ethernet) LED:communication WiFi) LED:I/O |
| Relative Humidity | 5…95 % 131 °F (55 °C) without condensation |
| IP Degree Of Protection | IP20 terminal block) IP40 front face) |
| Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
| Ambient Air Temp For Storage | -40…185 °F (-40…85 °C) |
| Pollution Degree | 3 |
| Operating Altitude | 6561.68 ft (2000 m) |
| Category | 09785 - POWERLOGIC SYSTEM CMPNTS |
| Discount Schedule | PL1 |
| GTIN | 00785901433309 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | DE |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
