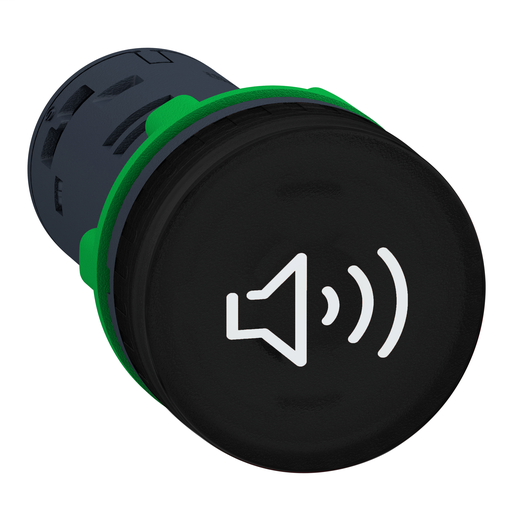

XB5KSB
Complete buzzer, plastic, Ø22, continuous or intermittent tone, 24 V AC/DC
This Harmony XB5, annunciator siren is supplied with 24V AC/DC with noise level 85dB. This annuciator siren provides a signaletic sound alarm for your installation. It is easily installed into standard 22mm diameter cut-outs. It has an IP40 protection. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Add to Quote CatalogueSpecifications
| Part Number | XB5KSB |
|---|---|
| Country of Origin | FR |
| UPC | 785901396192 |
| UPC11 | 78590139619 |
| EAN | 3389110102666 |
| Availability | S |
| Lead Time | 61 |
| UNSPSC | 39122216 |
| ECCN | EAR99 |
| HTs Code | 8531809041 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS2 |
| Return Indicator | Yes |
| Depth | 2.17 inch |
| Height | 1.14 inch |
| Width | 1.14 inch |
| Weight | 0.05 pound |
Characteristics
| Range Of Product | Harmony XB5 |
|---|---|
| Bezel Material | Dark grey plastic |
| Product Or Component Type | Annunciator |
| Mounting Diameter | 0.87 in (22 mm) |
| Head Type | Standard |
| Cap/Operator Or Lens Colour | Black |
| Us Rated Supply Voltage | 24 V +/- 10 % |
| Supply Circuit Type | AC/DC |
| Supply Frequency | 50/60 Hz |
| Current Consumption | <= 28 mA |
| Signalling Type | Continuous or intermittent tone |
| Resistance High Press Washer | 1305.34 psi (9000000 Pa) 180 °F (82 °C) 0.1 m |
| Height | 1.14 in (29 mm) |
| Width | 1.14 in (29 mm) |
| Depth | 2.17 in (55 mm) |
| Product Weight | 0.05 lb(US) (0.024 kg) |
| Noise Level | 90 dB 0.1 m |
| Protective Treatment | TH |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -40…158 °F (-40…70 °C) |
| Overvoltage Category | Class II IEC 60536 |
| Electrical Shock Protect Class | Class II IEC 60536 |
| IP Degree Of Protection | IP66 IEC 60529 IP67 IP69 IP69K |
| Nema Degree Of Protection | NEMA 4X NEMA 13 |
| IK Degree Of Protection | IK03 EN 50102 IK03 IEC 50102 |
| Standards | IEC 60947-5-1 EN 60947-1 EN 60947-5-1 EN 60947-5-4 CSA C22.2 No 14 IEC 60947-5-4 IEC 60947-1 UL 508 JIS C8201-5-1 JIS C8201-1 |
| Product Certifications | CSA BV LROS (Lloyds register of shipping) RINA GL DNV UL Listed |
| Category | 22467 - PUSHBUTTONS,22MM(PLASTIC) NEW |
| Discount Schedule | CS2 |
| GTIN | 00785901396192 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
