| Product Or Component Type |

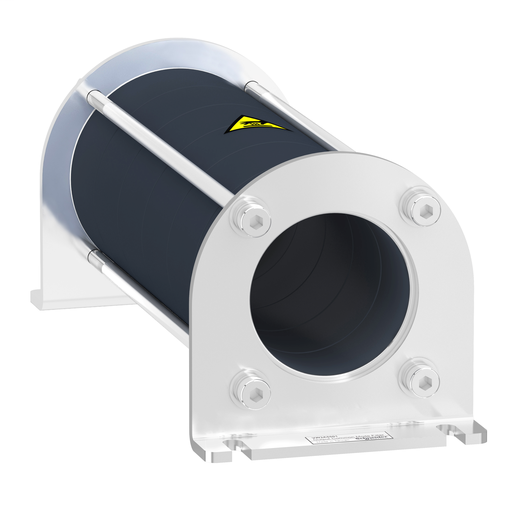

Common mode output filter |
| Range Compatibility |
Altivar Process ATV900
Altivar Process ATV600 |
| Value Of Inductance |
219.6 µH |
| Product Compatibility |
Variable speed drive ATV630 wall mount, 0.75…11 kW, 380...480 V
Variable speed drive ATV650 wall mount, 0.75…11 kW, 380...480 V
Variable speed drive ATV930 wall mount, 0.75…11 kW, 380...480 V
Variable speed drive ATV950 wall mount, 0.75…11 kW, 380...480 V
Variable speed drive ATV630 wall mount, 0.75…5.5 kW, 200...240 V
Variable speed drive ATV930 wall mount, 0.75…5.5 kW, 200...240 V |
| Motor Cable Length |
492.13 ft (150 m)(shielded cable)5.5…11 kW 380...480 V 1
984.25 ft (300 m)(unshielded cable)0.75…11 kW 380...480 V 1
984.25 ft (300 m)(shielded cable)0.75…4 kW 380...480 V 1
1640.42 ft (500 m)(unshielded cable)5.5…11 kW 380...480 V 1 VW3A5502
1640.42 ft (500 m)(shielded cable)5.5…11 kW 380...480 V 2
3280.84 ft (1000 m)(unshielded cable)0.75…5.5 kW 380...480 V 1 VW3A5502
3280.84 ft (1000 m)(unshielded cable)7.5…11 kW 380...480 V 2
492.13 ft (150 m)(shielded cable)5.5 kW 200...240 V 1
984.25 ft (300 m)(unshielded cable)0.75…5.5 kW 200...240 V 1
984.25 ft (300 m)(shielded cable)0.75…4 kW 200...240 V 1
1640.42 ft (500 m)(unshielded cable)5.5 kW 200...240 V 1 VW3A5501
1640.42 ft (500 m)(shielded cable)5.5 kW 200...240 V 2
3280.84 ft (1000 m)(unshielded cable)0.75…4 kW 200...240 V 1 VW3A5502
3280.84 ft (1000 m)(unshielded cable)5.5 kW 200...240 V 2 |
| Saturation Current |
1.1 A |
| Internal Diameter |
1.46 in (37.1 mm) 3-phase cable inside
1.46 in (37.1 mm) PE cable outside |
| Electrical Insulation Class |
Class I |
| Mechanical Robustness |
Shocks class 3M4 IEC 60721-3-3
Vibrations class 3M4 IEC 60721-3-3 |
| Switching Frequency |
<= 10 kHz |
| Output Frequency |
100 Hz |
| Height |
6.45 in (163.8 mm) |
| Width |
2.60 in (66 mm) |
| Depth |
2.60 in (66 mm) |
| Product Weight |
1.46 lb(US) (0.66 kg) |
| Relative Humidity |
5…95 % without condensation |
| Ambient Air Temp For Op |
5…140 °F (-15…60 °C) |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Category |
22276 - ATV930 FRAMES 1 & 2 |
| Discount Schedule |
CP4E |
| GTIN |
00785901014140 |
| Nbr. Of Units In Pkg. |
1 |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free |
Yes |
| Mercury Free |
Yes |
