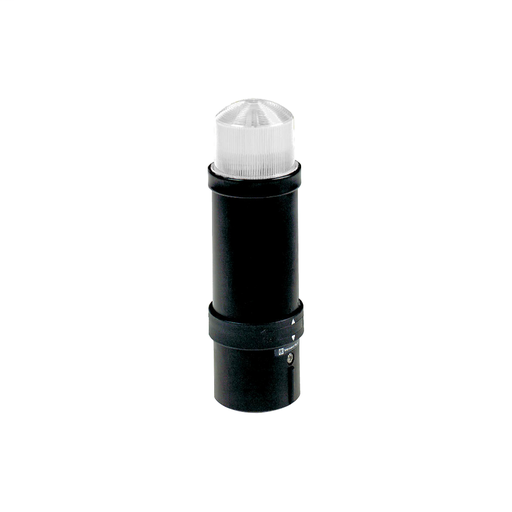

XVBL6M7
CLEAR STROBE BEACON 5 JOULE, 230V AC
This illuminated complete beacon is designed as lighting accessory for tower light. Its flash discharge tube offers a strobe light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.
Add to Quote CatalogueSpecifications
| Part Number | XVBL6M7 |
|---|---|
| Country of Origin | CZ |
| UPC | 389110844948 |
| UPC11 | 38911084494 |
| EAN | 3389110844948 |
| Availability | N |
| Lead Time | 19 |
| ECCN | EAR99 |
| HTs Code | 8531809026 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | XV |
| Return Indicator | No |
| Weight | 0.96 pound |
Characteristics
| Range Of Product | Harmony XVB Universal |
|---|---|
| Product Or Component Type | Complete beacon |
| Beacon/Indicator Bk Unit Type | Base unit direct or tube fixing Illuminated unit |
| Signalling Type | Flashing |
| Mounting Diameter | 2.76 in (70 mm) |
| Component Name | XVBL |
| Material | Glass reinforced polyamide base unit Polycarbonate illuminated unit |
| Light Source | Integral flash discharge tube, clear |
| Bulb Type | Flash discharge tube |
| Us Rated Supply Voltage | 230 V AC |
| Connections - Terminals | Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
| Ui Rated Insulation Voltage | 250 V IEC 60947-1 |
| Nominal Voltage Limit | 0.85...1.1 Un IEC 60947-5-1 |
| Current Consumption | < 105 mA AC |
| Uimp Rated Imp Wstd Voltage | 4 kV IEC 60947-1 |
| Flash Energy | 5 J |
| Flashing Frequency | 1 Hz |
| Illuminating Intensity | 13 cd |
| Cad Overall Width | 2.76 in (70 mm) |
| Cad Overall Height | 9.13 in (232 mm) |
| Cad Overall Depth | 2.76 in (70 mm) |
| Terminals Description ISO n°1 | (GND)GROUND (COM-1)PW |
| Product Weight | 0.96 lb(US) (0.435 kg) |
| Product Certifications | GOST UL 508 CSA C22-2 No 14 CCC |
| Standards | EN/IEC 60947-5-1 |
| Protective Treatment | TC |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Electrical Shock Protect Class | Class I on support tube IEC 61140 Class II on base unit IEC 61140 |
| IP Degree Of Protection | IP65 on fixing base XVBZ0. IEC 60529 IP66 on base unit IEC 60529 |
| Nema Degree Of Protection | NEMA 4X UL 508 indoor) |
| Category | 22611 - XVB-STACKLIGHTS |
| Discount Schedule | XV |
| GTIN | 03389110844948 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | CZ |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
Documents
- Catalog (DIA5ED2130801EN)
- CAD dxf (XVBL6toBL8-B3B3toB8-G3toG8-M3toM8_CAD2D-MECHANICAL_REAR)
- CAD dwg (XVBL6toBL8-B3B3toB8-G3toG8-M3toM8_CAD2D-MECHANICAL_TOP)
- CAD dwf (XVBL6toBL8-B3B3toB8-G3toG8-M3toM8_CAD2D-MECHANICAL_FRONT)
- CAD dwf (XVBL6toBL8-B3B3toB8-G3toG8-M3toM8_CAD2D-MECHANICAL_BOTTOM)
- CAD dwf (XVBL6toBL8-B3B3toB8-G3toG8-M3toM8_CAD2D-MECHANICAL_TOP)
- CAD dwg (XVBL6toBL8-B3B3toB8-G3toG8-M3toM8_CAD2D-MECHANICAL_FRONT)
- CAD wmf (XVBL6toBL8-B3B3toB8-G3toG8-M3toM8_CAD2D-MECHANICAL_FRONT)
- CAD dxf (XVBL6toBL8-B3B3toB8-G3toG8-M3toM8-A_CAD2D-MECHANICAL_SIDE)
