| Range Of Product |
Harmony K |
| Product Or Component Type |

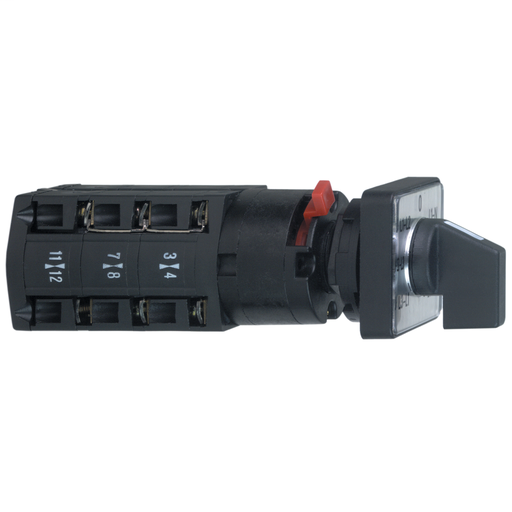

Complete cam switch |
| Component Name |
K10 |
| Ith Cnvtl Free Air Therm Crrt |
10 A |
| Product Mounting |
Front mounting |
| Fixing Mode |
Ø 16 or 22 mm hole |
| Cam Switch Head Type |
With front plate 30 x 30 mm |
| Type Of Operator |
Black handle |
| Rotary Handle Padlocking |
Without |
| Presentation Of Legend |
With metallic, 0 - L1L2 - L2L3 - L3L1 black |
| Cam Switch Function |
Voltmeter switch |
| Return |
Without |
| Type Of Measurement |
Between 3 phases |
| Off Position |
With Off position |
| Switching Positions |
Right: 270° - 315° - 0° - 45° |
| IP Degree Of Protection |
Contact block IP20
Operating head IP65 IEC 60529 |
| Switching Angle |
45 ° |
| Ui Rated Insulation Voltage |
440 V 3)IEC 60947-1 |
| Rated Opr Power In W |
1800 W AC-23A, 220/240 V 3 phase
370 W AC-23A, 110/120 V 1 phase
750 W AC-23A, 220/240 V 1 phase |
| Rated Power In Hp |
1 hp 220/240 V AC, 3 phase
0.33 hp 110/120 V AC, 1 phase
0.75 hp 110/120 V AC, 3 phase
0.75 hp 220/240 V AC, 1 phase |
| Ie Rated Operational Crrt Ac |
10 A 400 V AC-1
10 A 400 V AC-21A
3 A 240 V AC-15
6 A 120 V AC-15 |
| Ie Rated Operational Crrt Dc |
10 A 24 V resistive
0.3 A 220 V resistive
0.7 A 110 V resistive |
| Electrical Durability |
100000000 cycles |
| Short-Circuit Protection |
10 A cartridge fuse gG |
| Uimp Rated Imp Wstd Voltage |
4 kV IEC 60947-1 |
| Contact Operation |
Slow-break |
| Electrical Connection |
Captive screw clamp terminals 2 x 1.5 mm² |
| Mechanical Durability |
1000000 cycles |
| Cad Overall Width |
1.18 in (30 mm) |
| Cad Overall Height |
1.18 in (30 mm) |
| Cad Overall Depth |
3.46 in (88 mm) |
| Product Weight |
0.10 lb(US) (0.045 kg) |
| Standards |
CENELEC EN 50013
EN/IEC 60947-3
EN/IEC 60947-5-1 |
| Product Certifications |
CULus |
| Protective Treatment |
TC |
| Ambient Air Temp For Op |
-4…131 °F (-20…55 °C) |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Electrical Shock Protect Class |
Class II IEC 60536 |
| Category |
21446 - 9003 K CAM SWITCHES |
| Discount Schedule |
CS1 |
| GTIN |
03389110076752 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
AT |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free |
Yes |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty |
18 months |
