| Range Of Product |
Harmony K |
| Product Or Component Type |

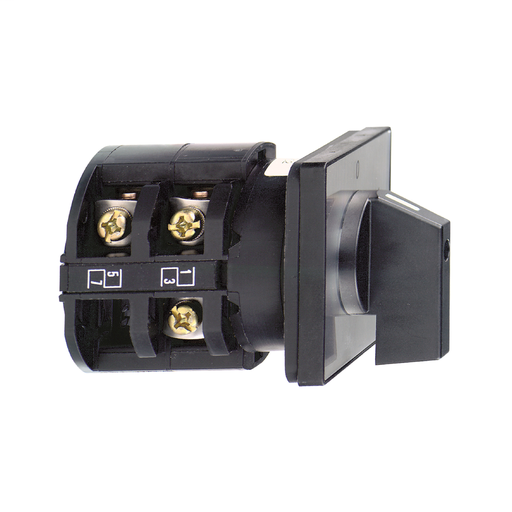

Complete cam switch |
| Component Name |
K30 |
| Ith Cnvtl Free Air Therm Crrt |
32 A |
| Mounting Location |
Front |
| Fixing Mode |
4 holes |
| Cam Switch Head Type |
With front plate 64 x 64 mm |
| Type Of Operator |
Black handle |
| Rotary Handle Padlocking |
Without |
| Presentation Of Legend |
With metallic, 1 - 0 - 2 black |
| Cam Switch Function |
Changeover switch |
| Return |
Without |
| Off Position |
With Off position |
| Poles Description |
2P |
| Switching Positions |
Right: 0° - 60°
Left: 0° - 300° |
| IP Degree Of Protection |
IP40 IEC 529
IP40 NF C 20-010 |
| Switching Angle |
60 ° |
| Ui Rated Insulation Voltage |
690 V 3)EN 60947-1
690 V 3)IEC 60947-1 |
| Short-Circuit Current |
5000 A |
| Short-Circuit Protection |
50 A cartridge fuse gG |
| Uimp Rated Imp Wstd Voltage |
6 kV EN 947-1
6 kV IEC 947-1 |
| Contact Operation |
Slow-break |
| Positive Opening |
With |
| Electrical Connection |
Captive screw clamp terminals flexible 2 x 4 mm²
Captive screw clamp terminals solid 2 x 6 mm² |
| Tightening Torque |
10.62 lbf.in (1.2 N.m) |
| Switching Capacity In Ma |
11000 mA DC 120 V 2 inductive 50 ms)
11000 mA DC 180 V 3 inductive 50 ms)
11000 mA DC 60 V 1 inductive 50 ms)
1200 mA DC 220 V 1 resistive 1 ms)
1200 mA DC 440 V 2 resistive 1 ms)
1200 mA DC 660 V 3 resistive 1 ms)
16000 mA DC 140 V 3 inductive 50 ms)
16000 mA DC 48 V 1 inductive 50 ms)
16000 mA DC 95 V 2 inductive 50 ms)
23000 mA DC 120 V 2 resistive 1 ms)
23000 mA DC 180 V 3 resistive 1 ms)
23000 mA DC 60 V 1 resistive 1 ms)
25000 mA DC 30 V 1 inductive 50 ms)
25000 mA DC 60 V 2 inductive 50 ms)
25000 mA DC 90 V 3 inductive 50 ms)
3200 mA DC 110 V 1 inductive 50 ms)
3200 mA DC 220 V 2 inductive 50 ms)
3200 mA DC 330 V 3 inductive 50 ms)
32000 mA DC 140 V 3 resistive 1 ms)
32000 mA DC 24 V 1 inductive 50 ms)
32000 mA DC 24 V 1 resistive 1 ms)
32000 mA DC 48 V 1 resistive 1 ms)
32000 mA DC 48 V 2 inductive 50 ms)
32000 mA DC 48 V 2 resistive 1 ms)
32000 mA DC 70 V 3 inductive 50 ms)
32000 mA DC 70 V 3 resistive 1 ms)
32000 mA DC 95 V 2 resistive 1 ms)
400 mA DC 440 V 1 resistive 1 ms)
400 mA DC 660 V 2 resistive 1 ms)
6500 mA DC 110 V 1 resistive 1 ms)
6500 mA DC 220 V 2 resistive 1 ms)
6500 mA DC 330 V 3 resistive 1 ms) |
| Mechanical Durability |
300000 cycles |
| Cad Overall Width |
2.52 in (64 mm) |
| Cad Overall Height |
2.52 in (64 mm) |
| Cad Overall Depth |
3.66 in (93 mm) |
| Product Weight |
0.55 lb(US) (0.25 kg) |
| Standards |
EN/IEC 60947-3 |
| Product Certifications |
CULus 120 V 2 hp 1 phase
CULus 240 V 5 hp 1 phase
CULus 240 V 5 hp 3 phase
CULus 480 V 20 hp 3 phase |
| Protective Treatment |
TC |
| Ambient Air Temp For Op |
-13…131 °F (-25…55 °C) |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Overvoltage Category |
Class II IEC 60536
Class II NF C 20-030 |
| Category |
21446 - 9003 K CAM SWITCHES |
| Discount Schedule |
CS1 |
| GTIN |
00785901594468 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
AT |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free |
Yes |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty |
18 months |
