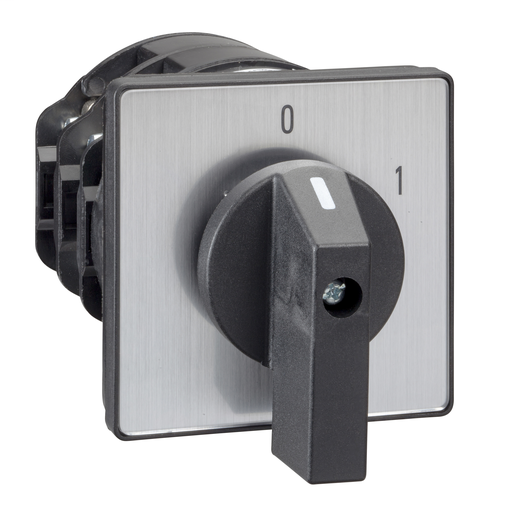

| Range Of Product |
Harmony K |
| Product Or Component Type |
Complete cam switch |
| Component Name |
K150 |
| Ith Cnvtl Free Air Therm Crrt |
150 A |
| Product Mounting |
Front mounting |
| Fixing Mode |
4 holes |
| Cam Switch Head Type |
With front plate 88 x 88 mm |
| Type Of Operator |
Black handle |
| Rotary Handle Padlocking |
Without |
| Presentation Of Legend |
With metallic, 1 - 0 - 2 black |
| Cam Switch Function |
Reversing switch |
| Return |
Without |
| Off Position |
With Off position |
| Poles Description |
2P |
| Switching Positions |
Right: 0° - 60°
Left: 0° - 300° |
| IP Degree Of Protection |
IP40 IEC 529
IP40 NF C 20-010 |
| Switching Angle |
60 ° |
| Ui Rated Insulation Voltage |
690 V 3)EN 60947-1
690 V 3)IEC 60947-1 |
| Short-Circuit Current |
25000 A |
| Short-Circuit Protection |
200 A cartridge fuse gG |
| Uimp Rated Imp Wstd Voltage |
6 kV EN 947-1
6 kV IEC 947-1 |
| Contact Operation |
Slow-break |
| Positive Opening |
With |
| Electrical Connection |
Captive screw clamp terminals flexible 1 x 50 mm²
Captive screw clamp terminals solid 1 x 70 mm² |
| Tightening Torque |
22.13 lbf.in (2.5 N.m) |
| Switching Capacity In Ma |
150000 mA DC 140 V 3 resistive 1 ms)
150000 mA DC 24 V 1 inductive 50 ms)
150000 mA DC 24 V 1 resistive 1 ms)
150000 mA DC 48 V 1 resistive 1 ms)
150000 mA DC 48 V 2 inductive 50 ms)
150000 mA DC 48 V 2 resistive 1 ms)
150000 mA DC 70 V 3 inductive 50 ms)
150000 mA DC 70 V 3 resistive 1 ms)
150000 mA DC 95 V 2 resistive 1 ms)
50000 mA DC 30 V 1 inductive 50 ms)
50000 mA DC 60 V 2 inductive 50 ms)
50000 mA DC 90 V 3 inductive 50 ms) |
| Mechanical Durability |
300000 cycles |
| Cad Overall Width |
3.46 in (88 mm) |
| Cad Overall Height |
3.46 in (88 mm) |
| Cad Overall Depth |
5.51 in (140 mm) |
| Product Weight |
1.94 lb(US) (0.88 kg) |
| Standards |
EN/IEC 60947-3 |
| Product Certifications |
CULus 240 V 15 hp 1 phase
CULus 240 V 25 hp 3 phase
CULus 480 V 40 hp 3 phase
CULus 120 V 7.5 hp 1 phase |
| Protective Treatment |
TC |
| Ambient Air Temp For Op |
-13…131 °F (-25…55 °C) |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Electrical Shock Protect Class |
Class II IEC 60536
Class II NF C 20-030 |
| Category |
21446 - 9003 K CAM SWITCHES |
| Discount Schedule |
CS1 |
| GTIN |
03389110084955 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
AT |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free |
Yes |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty |
18 months |
