| Range Of Product |
Harmony K |
| Product Or Component Type |

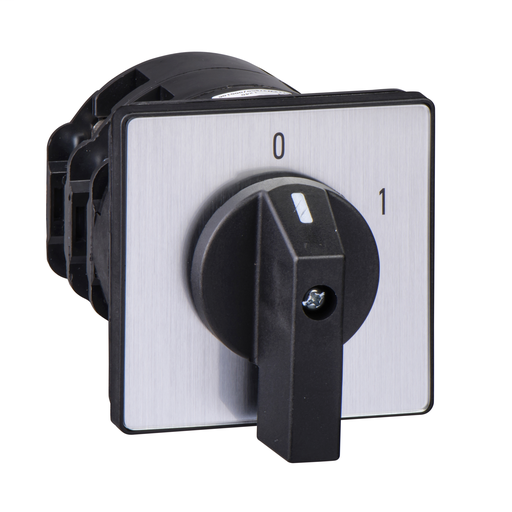

Complete cam switch |
| Component Name |
K115 |
| Ith Cnvtl Free Air Therm Crrt |
115 A |
| Product Mounting |
Front mounting |
| Fixing Mode |
4 holes |
| Cam Switch Head Type |
With front plate 88 x 88 mm |
| Type Of Operator |
Black handle |
| Rotary Handle Padlocking |
Without |
| Presentation Of Legend |
With metallic, 1 - 0 - 2 black |
| Cam Switch Function |
Reversing switch |
| Return |
Without |
| Off Position |
With Off position |
| Poles Description |
2P |
| Switching Positions |
Left: 0° - 300°
Right: 0° - 60° |
| IP Degree Of Protection |
IP40 IEC 529
IP40 NF C 20-010 |
| Switching Angle |
60 ° |
| Ui Rated Insulation Voltage |
690 V 3)EN 60947-1
690 V 3)IEC 60947-1 |
| Rated Opr Power In W |
13000 W AC-3, 380/440 V 1 phase EN/IEC 60947-3
15000 W AC-23A, 220/240 V 1 phase EN/IEC 60947-3
15000 W AC-3, 220/240 V 3 phase EN/IEC 60947-3
22000 W AC-23A, 380/440 V 1 phase EN/IEC 60947-3
30000 W AC-23A, 220/240 V 3 phase EN/IEC 60947-3
30000 W AC-3, 380/440 V 3 phase EN/IEC 60947-3
30000 W AC-3, 660/690 V 3 phase EN/IEC 60947-3
3700 W AC-3, 110 V 1 phase EN/IEC 60947-3
45000 W AC-23A, 380/440 V 3 phase EN/IEC 60947-3
5500 W AC-23A, 110 V 1 phase EN/IEC 60947-3
65000 W AC-23A, 660/690 V 3 phase EN/IEC 60947-3
7500 W AC-3, 220/240 V 1 phase EN/IEC 60947-3 |
| Ie Rated Operational Crrt Ac |
100 A AC-21A EN/IEC 60947-3 |
| Short-Circuit Current |
15000 A |
| Short-Circuit Protection |
125 A cartridge fuse gG |
| Uimp Rated Imp Wstd Voltage |
6 kV EN 947-1
6 kV IEC 947-1 |
| Contact Operation |
Slow-break |
| Positive Opening |
With |
| Electrical Connection |
Captive screw clamp terminals flexible 1 x 25 mm²
Captive screw clamp terminals solid 1 x 35 mm² |
| Tightening Torque |
22.13 lbf.in (2.5 N.m) |
| Switching Capacity In Ma |
100000 mA DC 140 V 3 resistive 1 ms)
100000 mA DC 24 V 1 inductive 50 ms)
100000 mA DC 48 V 1 resistive 1 ms)
100000 mA DC 48 V 2 inductive 50 ms)
100000 mA DC 70 V 3 inductive 50 ms)
100000 mA DC 95 V 2 resistive 1 ms)
115000 mA DC 24 V 1 resistive 1 ms)
115000 mA DC 48 V 2 resistive 1 ms)
115000 mA DC 70 V 3 resistive 1 ms)
33000 mA DC 30 V 1 inductive 50 ms)
33000 mA DC 60 V 2 inductive 50 ms)
33000 mA DC 90 V 3 inductive 50 ms) |
| Mechanical Durability |
300000 cycles |
| Cad Overall Width |
3.46 in (88 mm) |
| Cad Overall Height |
3.46 in (88 mm) |
| Cad Overall Depth |
5.04 in (128 mm) |
| Product Weight |
1.64 lb(US) (0.745 kg) |
| Standards |
EN/IEC 60947-3 |
| Product Certifications |
CULus 120 V 5 hp 1 phase
CULus 240 V 10 hp 1 phase
CULus 240 V 20 hp 3 phase
CULus 480 V 30 hp 3 phase |
| Protective Treatment |
TC |
| Ambient Air Temp For Op |
-13…131 °F (-25…55 °C) |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Electrical Shock Protect Class |
Class II IEC 60536
Class II NF C 20-030 |
| Category |
21446 - 9003 K CAM SWITCHES |
| Discount Schedule |
CS1 |
| GTIN |
03389110084948 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
AT |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free |
Yes |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty |
18 months |
