K10D002UCH

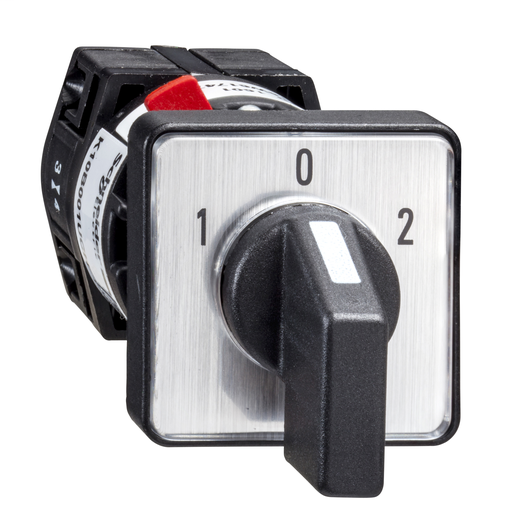

Cam changeover switch – 2-pole – 60° – 10 A – for Ø 16 or 22 mm
This Harmony K10 complete cam switch/selector switch has 2 poles (2P). It also has a rating of 10A, a screw clamp mounting mode and a metallic color with black marking. It has “1 – 0 – 2” marking to indicate the position of the switch. This metal head complete cam switch/selector switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 60 degree between its switching positions. IP65 on its front part allows for installation in harsh (heavy) environment or outdoor.
Add to Quote CatalogueSpecifications
| Part Number | K10D002UCH |
|---|---|
| Country of Origin | AT |
| UPC | 389110076653 |
| UPC11 | 38911007665 |
| EAN | 3389110076653 |
| Availability | N |
| Lead Time | 39 |
| UNSPSC | 39122217 |
| ECCN | EAR99 |
| HTs Code | 8536509025 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS1 |
| Return Indicator | No |
| Weight | 0.10 pound |
Characteristics
| Range Of Product | Harmony K |
|---|---|
| Product Or Component Type | Complete cam switch |
| Component Name | K10 |
| Ith Cnvtl Free Air Therm Crrt | 10 A |
| Product Mounting | Front mounting |
| Fixing Mode | Ø 16 or 22 mm hole |
| Cam Switch Head Type | With front plate 30 x 30 mm |
| Type Of Operator | Black handle |
| Rotary Handle Padlocking | Without |
| Presentation Of Legend | With metallic, 1 - 0 - 2 black |
| Cam Switch Function | Changeover switch |
| Return | Without |
| Off Position | With Off position |
| Poles Description | 2P |
| Switching Positions | Right: 0° - 60° Left: 0° - 300° |
| IP Degree Of Protection | Contact block IP20 Operating head IP65 IEC 60529 |
| Switching Angle | 60 ° |
| Ui Rated Insulation Voltage | 440 V 3)IEC 60947-1 |
| Rated Opr Power In W | 1800 W AC-23A, 220/240 V 3 phase 370 W AC-23A, 110/120 V 1 phase 750 W AC-23A, 220/240 V 1 phase |
| Rated Power In Hp | 1 hp 220/240 V AC, 3 phase 0.33 hp 110/120 V AC, 1 phase 0.75 hp 110/120 V AC, 3 phase 0.75 hp 220/240 V AC, 1 phase |
| Ie Rated Operational Crrt Ac | 10 A 400 V AC-1 10 A 400 V AC-21A 3 A 240 V AC-15 6 A 120 V AC-15 |
| Ie Rated Operational Crrt Dc | 10 A 24 V resistive 0.3 A 220 V resistive 0.7 A 110 V resistive |
| Electrical Durability | 100000000 cycles |
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Uimp Rated Imp Wstd Voltage | 4 kV IEC 60947-1 |
| Contact Operation | Slow-break |
| Electrical Connection | Captive screw clamp terminals 2 x 1.5 mm² |
| Mechanical Durability | 1000000 cycles |
| Cad Overall Width | 1.18 in (30 mm) |
| Cad Overall Height | 1.18 in (30 mm) |
| Cad Overall Depth | 3.46 in (88 mm) |
| Product Weight | 0.10 lb(US) (0.045 kg) |
| Standards | CENELEC EN 50013 EN/IEC 60947-3 EN/IEC 60947-5-1 |
| Product Certifications | CULus |
| Protective Treatment | TC |
| Ambient Air Temp For Op | -4…131 °F (-20…55 °C) |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Electrical Shock Protect Class | Class II IEC 60536 |
| Category | 21446 - 9003 K CAM SWITCHES |
| Discount Schedule | CS1 |
| GTIN | 03389110076653 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | AT |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
