| Range Of Product |
Harmony K |
| Product Or Component Type |

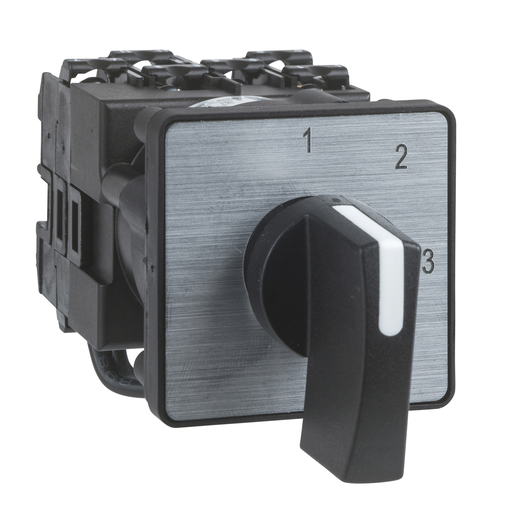

Complete cam switch |
| Component Name |
K1 |
| Ith Cnvtl Free Air Therm Crrt |
12 A |
| Product Mounting |
Front mounting |
| Fixing Mode |
Multifixing |
| Cam Switch Head Type |
With front plate 45 x 45 mm |
| Type Of Operator |
Black handle 1.38 in (35 mm) |
| Rotary Handle Padlocking |
Without |
| Presentation Of Legend |
With metallic, 2 - 0 - 1 black |
| Cam Switch Function |
Reversing switch |
| Return |
Spring return from 45° to 0°
Spring return from 315° to 0° |
| Off Position |
With Off position |
| Poles Description |
1P |
| Switching Positions |
Right: 0° - 45°
Left: 0° - 315° |
| IP Degree Of Protection |
IP40 IEC 529
IP40 NF C 20-010 |
| Switching Angle |
45 ° |
| Ui Rated Insulation Voltage |
690 V 3)IEC 60947-1 |
| Ithe Cnvtl Enclosed Therm Crrt |
10 A |
| Rated Opr Power In W |
10500 W AC-21, 500...660 V 3 phase IEC 60947-3
1100 W AC-3, 230 V 3 phase IEC 60947-3
1500 W AC-23A, 230 V 3 phase IEC 60947-3
1500 W AC-3, 400 V 1 phase IEC 60947-3
1500 W AC-3, 400 V 3 phase IEC 60947-3
1500 W AC-3, 500 V 3 phase IEC 60947-3
1500 W AC-3, 690 V 3 phase IEC 60947-3
2200 W AC-23A, 400 V 3 phase IEC 60947-3
2200 W AC-23A, 500 V 3 phase IEC 60947-3
2200 W AC-23A, 690 V 3 phase IEC 60947-3
4800 W AC-21, 230 V 3 phase IEC 60947-3
600 W AC-3, 230 V 1 phase IEC 60947-3
8300 W AC-21, 400 V 3 phase IEC 60947-3 |
| Ie Rated Operational Crrt Ac |
1.8 A 690 V AC-3 3 phase IEC 60947-3
2.8 A 500 V AC-3 3 phase IEC 60947-3
2.8 A 690 V AC-23A 3 phase IEC 60947-3
3.3 A 400 V AC-3 3 phase IEC 60947-3
3.8 A 500 V AC-23A 3 phase IEC 60947-3
4.6 A 230 V AC-3 3 phase IEC 60947-3
4.8 A 400 V AC-23A 3 phase IEC 60947-3
5.6 A 230 V AC-23A 3 phase IEC 60947-3
1 A 500 V AC-15 IEC 60947-5-1
2 A 400 V AC-15 IEC 60947-5-1
3 A 230 V AC-15 IEC 60947-5-1 |
| Electrical Durability |
1000000 cycles AC-15
1000000 cycles AC-21
500000 cycles AC-23
500000 cycles AC-3 |
| Operating Rate |
2.5 cyc/mn AC-21
2.5 cyc/mn AC-23
2.5 cyc/mn AC-3
8.333 cyc/mn AC-15 |
| Short-Circuit Current |
10000 A |
| Short-Circuit Protection |
16 A cartridge fuse gG |
| Uimp Rated Imp Wstd Voltage |
4 kV in isolating function
6 kV IEC 60947-1 |
| Contact Operation |
Slow-break |
| Positive Opening |
With |
| Electrical Connection |
Captive screw clamp terminals flexible 2 x 1.5 mm²
Captive screw clamp terminals solid 1 x 2.5 mm² |
| Mechanical Durability |
1000000 cycles |
| Cad Overall Width |
1.77 in (45 mm) |
| Cad Overall Height |
1.77 in (45 mm) |
| Cad Overall Depth |
3.03 in (77 mm) |
| Product Weight |
0.25 lb(US) (0.115 kg) |
| Standards |
EN 60947-3 power circuit
EN 60947-5-1 control circuit
IEC 60947-3 power circuit
IEC 60947-5-1 control circuit
CENELEC EN 50013 |
| Product Certifications |
CSA 240 V 3 hp 3 phase 2
UL 240 V 0.33 hp 1 phase 2
CSA 240 V 1 hp 1 phase
UL 240 V 1 hp 3 phase |
| Protective Treatment |
TC |
| Ambient Air Temp For Op |
-13…131 °F (-25…55 °C) |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Shock Resistance |
30 gn IEC 68-2-27 |
| Vibration Resistance |
5 gn 10…150 Hz)IEC 68-2-6 |
| Electrical Shock Protect Class |
Class II IEC 536
Class II NF C 20-030 |
| Category |
21446 - 9003 K CAM SWITCHES |
| Discount Schedule |
CS1 |
| GTIN |
03389110978698 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
CZ |
| Green Premium Status |
Green Premium product |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
