DZ5CE010
CABLE ENDS

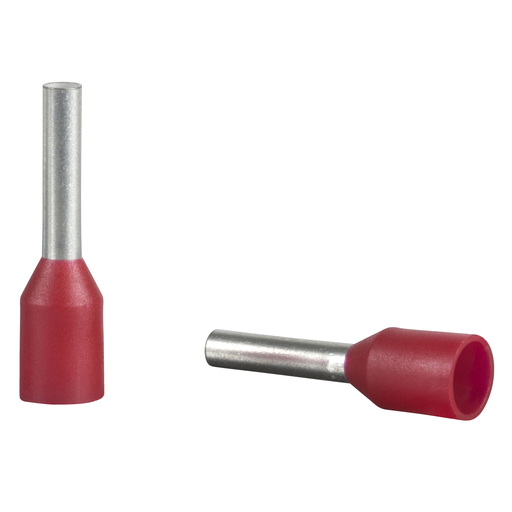

Linergy cable end insulated without marker tag holder. It applied to single conductor with 1 mm² cable cross section. It has red surface treatment. It is medium size without marker tag holder. Packing by string of bags and quantity per set is 10 sets of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is UL certified. It is compliant with Green Premium (RoHS/REACH).
Add to Quote CatalogueSpecifications
| Part Number | DZ5CE010 |
|---|---|
| Country of Origin | DE |
| UPC | 785901444664 |
| UPC11 | 78590144466 |
| EAN | 3389110537000 |
| Availability | S |
| Lead Time | 3 |
| UNSPSC | 39121410 |
| ECCN | EAR99 |
| HTs Code | 8536904000 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | I |
| Return Indicator | Yes |
| Weight | 0.22 pound |
Characteristics
| Range Of Product | Linergy |
|---|---|
| Product Or Component Type | Cable end |
| Cable End Size | Medium |
| Standards | NF C 63-023 |
| Type Of Packing | String of bags |
| Quantity Per Set | 10 sets of 100 |
| Cable Cross Section | 0.00 in² (1 mm²) |
| Cable End Type | Single conductor |
| Additional Information | Without marker tag holder |
| Colour | Red |
| Bezel Material | Halogen-free plastic |
| Tube Material | Copper ISO 1337 |
| Number Of Cables | 1 |
| Awg Gauge | AWG 18 |
| Bezel Size | Ø 3.5 mm |
| Tube Diameter | 0.07 in (1.7 mm) |
| Length | 0.55 in (14 mm) |
| Tube Length | 0.31 in (8 mm) |
| Product Weight | 0.22 lb(US) (0.1 kg) |
| Product Certifications | UL |
| Ambient Air Temp For Op | -4…221 °F (-20…105 °C) |
| Category | 22621 - IEC PANEL ACCESSORIES |
| Discount Schedule | I |
| GTIN | 00785901444664 |
| Nbr. Of Units In Pkg. | 1000 |
| Country Of Origin | DE |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
