DZ5CE040

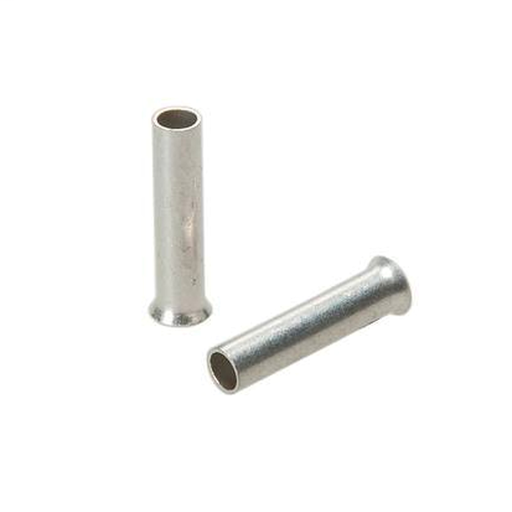

Cable end un-insulated, 4mm², length 12mm
Specifications
| Part Number | DZ5CE040 |
|---|---|
| Country of Origin | DE |
| UPC | 785901223214 |
| UPC11 | 78590122321 |
| EAN | 3389110537031 |
| Availability | N |
| Lead Time | 26 |
| UNSPSC | 39121410 |
| ECCN | EAR99 |
| HTs Code | 3917400090 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | I |
| Return Indicator | No |
| Weight | 0.66 pound |
Characteristics
| Range Of Product | Linergy |
|---|---|
| Product Or Component Type | Cable end |
| Cable End Size | Medium |
| Standards | DIN 46228-1 |
| Type Of Packing | String of bags |
| Quantity Per Set | 10 sets of 100 |
| Cable Cross Section | 0.01 in² (4 mm²) |
| Cable End Type | Single conductor |
| Additional Information | Non-insulated |
| Bezel Material | Halogen-free plastic |
| Tube Material | Copper ISO 1337 |
| Number Of Cables | 1 |
| Awg Gauge | AWG 12 |
| Bezel Size | Ø 5.4 mm |
| Tube Diameter | 0.13 in (3.2 mm) |
| Length | 0.47 in (12 mm) |
| Tube Length | 0.47 in (12 mm) |
| Product Weight | 0.66 lb(US) (0.3 kg) |
| Ambient Air Temp For Op | -4…221 °F (-20…105 °C) |
| Category | 22621 - IEC PANEL ACCESSORIES |
| Discount Schedule | I |
| GTIN | 00785901223214 |
| Nbr. Of Units In Pkg. | 100 |
| Country Of Origin | DE |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
