| Range Of Product |

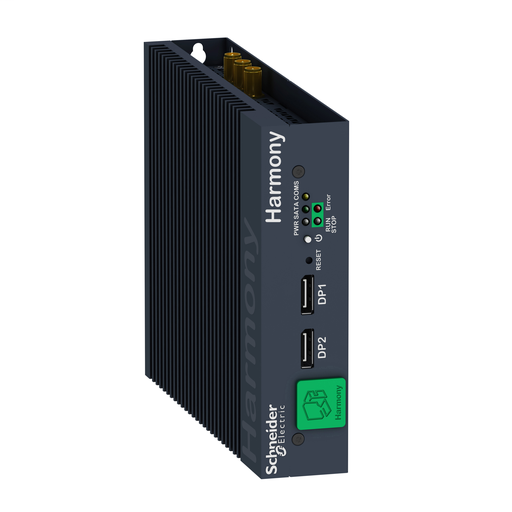

Harmony iPC |
| Product Or Component Type |
Modular box PC |
| Device Short Name |
Modular BOX PC Optimized Expandable |
| Free Slots |
1 M.2 SSD
1 Internal SATA HDD/SSD with adapter HMIYBADHDDBMO1 to mount |
| Operating System |
Windows 10 IoT Enterprise 64 bitmulti-language |
| Software Package |
Node-RED and system nodes restore IIoT Wiring Operating System Restore
McAfee white listing installer cyber security license not included
EcoStruxture secure connect advisor annual subscription cyber security license not included
EcoStruxure Operator Terminal Expert run time HMI license not included
EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only
EcoStruxure augmented operator advisor server augmented operator license not included |
| Range Compatibility |
IDisplay
Modular Display HMIDM |
| Accessory / Separate Part Dest |
PC panel HMIDM modular display |
| Mounting Location |
Book mounting
Flat mounting
Wall mounting |
| Processor Name |
Intel Atom E3930 |
| Memory Description |
8 GB RAM DDR3 internal not expandable) |
| Number Of Slots |
1 mini PCI Express full-size |
| Display Resolution |
3200 x 2000 pixels at 60 Hz |
| Watchdog Timer |
1…255 ms |
| Type Of Cooling |
Fanless |
| Electrical Connection |
Screw connector pin, 1 way ground bottom
Connector SMA, 3 ways top |
| Integrated Connection Type |
Display port 2 front
Ethernet 2 RJ45 I210 10/100/1000 Mbps bottom IEEE 1588 supported
COM1 serial link battery backup 1 male SUB-D 9 RS232 bottom
COM2 serial link 1 male SUB-D 9 RS232/422/485 bottom non-isolated
USB 2.0 port 2 USB type A 480 Mbit/s bottom non-isolated
USB 3.0 port 2 USB type A 5 Gbit/s bottom
TPM connector Ver 2.0 cyber security - hardware encryption TPM module HMIYMINATPM201 to be installed/default installed motherboard |
| Cyber Secured Boot |
Secure password boot UEFI |
| [Us] Rated Supply Voltage |
24 V DC power supply
100...240 V AC power supply |
| Supply Voltage Limits |
9.6…28.8 V |
| Inrush Current |
2.03 A |
| Power Consumption In W |
25.0 W box)
17.0 W with 4:3 12" Display HMIDM6421)
17.0 W with Wide 12" Display HMIDM6521)
18.0 W with 4:3 15" Display HMIDM7421)
20.0 W with Wide 15" Display HMIDM7521)
21.0 W with Wide 19" Display HMIDM9521)
22.0 W with Wide 22" Display HMIDMA521) |
| Control Type |
ON/OFF button |
| Depth |
2.13 in (54 mm) |
| Height |
5.91 in (150 mm) |
| Width |
7.36 in (187 mm) |
| Product Weight |
2.87 lb(US) (1.3 kg) |
| Impregnation Material |
Conformal coated |
| Nb Of Slt Available F Exp |
1.0 mini PCIe |
| Environmental Characteristic |
Hazardous location with additional adaptor HMIYMMAC1 |
| Standards |
Class A group 1 EN 55011
EN 61000-6-4
EN 61131-2
FCC part 15
UL 61010 |
| Product Certifications |
CE
CULus
CULus CSA 22-2 No 142
CULus HazLoc Class I Division 2 ANSI/ISA 12-12-01
CULus HazLoc Class I Division 2 CSA 22-2 No 213
ATEX
CCC
RCM
EAC
IEC Ex hazardous locations 3GD zone 2/22 |
| Quality Labels |
CE |
| Directives |
2004/108/EC - electromagnetic compatibility
2006/95/EC - low voltage directive |
| IP Degree Of Protection |
IP40 IEC 60529 |
| Electromagnetic Compatibility |
Immunity to high frequency interference IEC 61000-4
Disturbing field emissionclass A EN 55011
Conducted and radiated emissionsclass A EN 55022 |
| Ambient Air Temp For Storage |
-22…158 °F (-30…70 °C) IEC 60068-2-2
-22…158 °F (-30…70 °C) IEC 60068-2-14 |
| Relative Humidity |
10…95 % non-condensing EN/IEC 60068-2-30 |
| Ambient Air Temp For Op |
32…131 °F (0…55 °C) by default) EN/IEC 60068-2-2
32…131 °F (0…55 °C) flat mounting
32…122 °F (0…50 °C)HDD
32…122 °F (0…50 °C) flat mountingHDD |
| Operating Altitude |
6561.68 ft (2000 m) IEC 60664-1 |
| Vibration Resistance |
2 gn 5…500 Hz)M.2 SSD
1 gn 5…500 Hz)HDD |
| Category |
22577 - EDGE BOX IPC |
| Discount Schedule |
MC2 |
| Nbr. Of Units In Pkg. |
1 |
