Blue square recessed pushbutton head Ø22 spring return unmarked

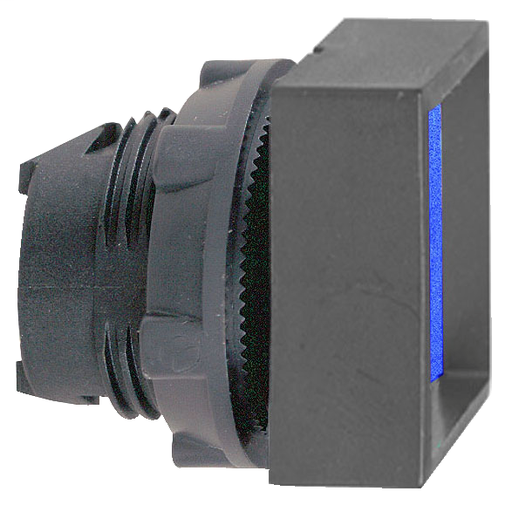

This Harmony XB5, recessed high guard blue head operates with spring return / impulse mechanism, it has a square shape. This button head provides a robust and ergonomic interface for controlling your machines thanks to its recessed high guard head. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly and is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Add to Quote CatalogueSpecifications
| Part Number | ZB5CA66 |
|---|---|
| UPC | 389110567717 |
| UPC11 | 38911056771 |
| EAN | 3389110567717 |
| Weight | 0.03 pound |
Characteristics
| Range Of Product | Harmony XB5 |
|---|---|
| Product Or Component Type | Head for non-illuminated push-button |
| Device Short Name | ZB5 |
| Bezel Material | Plastic |
| Mounting Diameter | 0.87 in (22 mm) |
| Sale Per Indivisible Qty | 1 |
| Shape Of Signaling Unit Head | Square |
| Type Of Operator | spring return |
| Operator Profile | Blue recessed, unmarked |
| Operator Add Information | High guard |
| Cad Overall Width | 1.18 in (30 mm) |
| Cad Overall Height | 1.18 in (30 mm) |
| Cad Overall Depth | 1.22 in (31 mm) |
| Product Weight | 0.03 lb(US) (0.012 kg) |
| Mechanical Durability | 5000000 cycles |
| Station Name | XALD 1...5 cut-outs XALK 2...5 cut-outs |
| Electrical Composition Code | C1 9 single front mounting C2 9 single and double front mounting C11 3 single front mounting C15 1 single front mounting SF1 3 single front mounting SR1 3 single rear mounting |
| Device Presentation | Basic element |
| Protective Treatment | TH |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
| Overvoltage Category | Class II IEC 60536 |
| IP Degree Of Protection | IP66 IEC 60529 |
| Nema Degree Of Protection | NEMA 13 NEMA 4X |
| Resistance High Press Washer | 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK Degree Of Protection | IK03 IEC 50102 |
| Standards | CSA C22.2 No 14 JIS C8201-5-1 EN/IEC 60947-5-1 EN/IEC 60947-1 UL 508 EN/IEC 60947-5-4 JIS C8201-1 |
| Product Certifications | BV UL Listed GL DNV RINA LROS (Lloyds register of shipping) CSA |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration Resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| GTIN | 03389110567717 |
| Warranty | 18 months |
