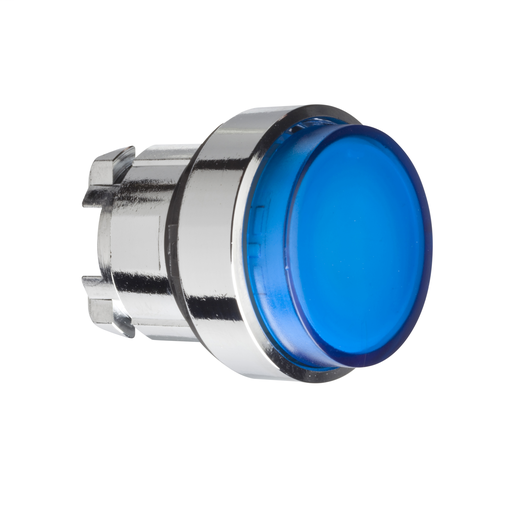

Blue projecting illuminated pushbutton head Ø22 spring return for BA9s bulb
This Harmony XB4, plain lens illuminated projecting blue button head operates with a spring return / impulse mechanism. This illuminated button head for BA9s Integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
Add to Quote CatalogueSpecifications
| Part Number | ZB4BW16 |
|---|---|
| Country of Origin | CZ |
| UPC | 785901353799 |
| UPC11 | 78590135379 |
| EAN | 3389110889789 |
| Availability | S |
| Lead Time | 36 |
| UNSPSC | 39122216 |
| HTs Code | 8531909001 |
| RoHS Compliant | Yes |
| Discount Schedule | CS2 |
| Return Indicator | Yes |
| Weight | 0.06 pound |
Characteristics
| Range Of Product | Harmony XB4 |
|---|---|
| Product Or Component Type | Head for illuminated push-button |
| Device Short Name | ZB4 |
| Product Compatibility | BA 9s |
| Bezel Material | Chromium plated metal |
| Head Type | Standard |
| Mounting Diameter | 0.87 in (22 mm) |
| Sale Per Indivisible Qty | 1 |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | spring return |
| Operator Profile | Blue projecting, unmarked |
| Operator Add Information | With plain lens |
| Cad Overall Width | 1.14 in (29 mm) |
| Cad Overall Height | 1.14 in (29 mm) |
| Cad Overall Depth | 1.26 in (32 mm) |
| Product Weight | 0.06 lb(US) (0.028 kg) |
| Resistance High Press Washer | 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Mechanical Durability | 10000000 cycles |
| Electrical Composition Code | M7 6 single front mounting BA 9s M8 6 single and double front mounting BA 9s M9 2 single front mounting BA 9s and transformer |
| Device Presentation | Basic sub-assemblies |
| Protective Treatment | TH |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -40…131 °F (-40…55 °C) |
| Overvoltage Category | Class I IEC 60536 |
| IP Degree Of Protection | IP66 IEC 60529 IP69 IP69K |
| Nema Degree Of Protection | NEMA 13 NEMA 4X |
| IK Degree Of Protection | IK06 EN 50102 |
| Standards | EN/IEC 60947-5-4 EN/IEC 60947-5-5 UL 508 EN/IEC 60947-5-1 JIS C8201-5-1 EN/IEC 60947-1 CSA C22.2 No 14 JIS C8201-1 |
| Product Certifications | RINA DNV CSA LROS (Lloyds register of shipping) UL Listed GL BV |
| Vibration Resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Category | 22468 - PUSHBUTTONS,22MM(METAL) NEW |
| Discount Schedule | CS2 |
| GTIN | 00785901353799 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | CZ |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Warranty | 18 months |
