ZB5AH63

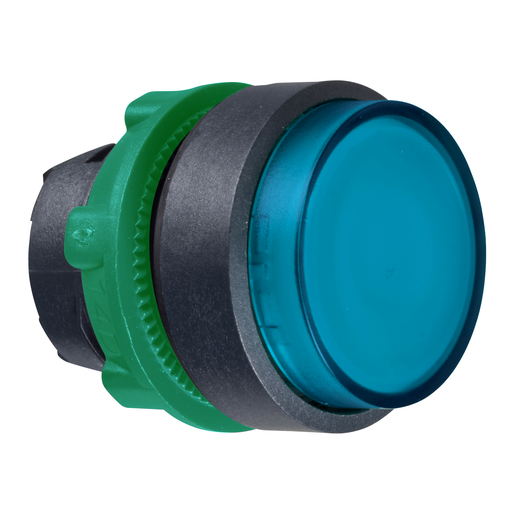

Blue projecting illuminated pushbutton head Ø22 push-push for integral LED
This blue projecting illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is also distinguishable by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Add to Quote CatalogueSpecifications
| Part Number | ZB5AH63 |
|---|---|
| Country of Origin | FR |
| UPC | 785901386575 |
| UPC11 | 78590138657 |
| EAN | 3389110905984 |
| Availability | N |
| Lead Time | 18 |
| UNSPSC | 39122216 |
| ECCN | EAR99 |
| HTs Code | 8538908180 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS2 |
| Return Indicator | No |
| Weight | 0.04 pound |
Characteristics
| Range Of Product | Harmony XB5 |
|---|---|
| Product Or Component Type | Head for illuminated push-button |
| Product Compatibility | Integral LED |
| Device Short Name | ZB5 |
| Bezel Material | Dark grey plastic |
| Mounting Diameter | 0.87 in (22 mm) |
| Head Type | Standard |
| Sale Per Indivisible Qty | 1 |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | push-push |
| Operator Profile | Blue projecting, unmarked |
| Cad Overall Width | 1.14 in (29 mm) |
| Cad Overall Height | 1.14 in (29 mm) |
| Cad Overall Depth | 1.30 in (33 mm) |
| Product Weight | 0.04 lb(US) (0.017 kg) |
| Mechanical Durability | 5000000 cycles |
| Station Name | XALD 1...5 cut-outs XALK 2...5 cut-outs |
| Electrical Composition Code | M5 2 single front mounting integral LED M6 2 single front mounting integral LED and transformer M10 2 single front mounting integral LED MF1 2 single front mounting integral LED MR1 2 single rear mounting integral LED |
| Device Presentation | Basic element |
| Protective Treatment | TH |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
| Electrical Shock Protect Class | Class II IEC 60536 |
| IP Degree Of Protection | IP66 IEC 60529 |
| Nema Degree Of Protection | NEMA 13 NEMA 4X |
| Resistance High Press Washer | 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK Degree Of Protection | IK05 IEC 50102 |
| Standards | CSA C22.2 No 14 EN/IEC 60947-5-1 EN/IEC 60947-5-5 EN/IEC 60947-5-4 EN/IEC 60947-1 JIS C8201-5-1 UL 508 JIS C8201-1 |
| Product Certifications | LROS (Lloyds register of shipping) BV CSA RINA GL UL Listed DNV |
| Vibration Resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Category | 22467 - PUSHBUTTONS,22MM(PLASTIC) NEW |
| Discount Schedule | CS2 |
| GTIN | 00785901386575 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| Warranty | 18 months |
