| Range Of Product |
Harmony XB5 |
| Product Or Component Type |

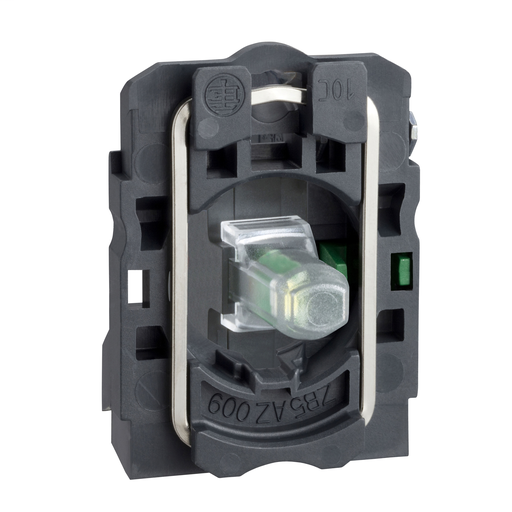

Complete body/contact assembly and light block |
| Device Short Name |
ZB5 |
| Fixing Collar Material |
Plastic |
| Sale Per Indivisible Qty |
1 |
| Head Type |
Standard |
| Contacts Type And Composition |
1 NO |
| Contact Operation |
Slow-break |
| Connections - Terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1 |
| Light Source |
Protected LED |
| Bulb Base |
Integral LED |
| Light Block Supply |
Direct |
| Light Source Colour |
Blue |
| Cad Overall Width |
1.18 in (30 mm) |
| Cad Overall Height |
1.65 in (42 mm) |
| Cad Overall Depth |
1.26 in (32 mm) |
| Terminals Description ISO n°1 |
(13-14)NO |
| Product Weight |
0.07 lb(US) (0.032 kg) |
| Contacts Usage |
Standard |
| Positive Opening |
Without |
| Operating Travel |
0.10 in (2.6 mm) NO changing electrical state)
0.17 in (4.3 mm) total travel) |
| Operating Force |
2.3 N NO changing electrical state |
| Operating Torque |
0.44 lbf.in (0.05 N.m) NO changing electrical state |
| Mechanical Durability |
5000000 cycles |
| Tightening Torque |
7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1 |
| Shape Of Screw Head |
Cross Philips no 1
Cross pozidriv No 1
Slotted flat Ø 4 mm
Slotted flat Ø 5.5 mm |
| Contacts Material |
Silver alloy (Ag/Ni) |
| Short-Circuit Protection |
10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Ith Cnvtl Free Air Therm Crrt |
10 A EN/IEC 60947-5-1 |
| Ui Rated Insulation Voltage |
600 V 3)EN 60947-1 |
| Uimp Rated Imp Wstd Voltage |
6 kV EN 60947-1 |
| Ie Rated Operational Current |
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1
6 A 120 V, AC-15, A600 EN/IEC 60947-5-1
0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1
0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1
1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| Electrical Durability |
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Electrical Reliability |
Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4
Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4 |
| Signalling Type |
Steady |
| Us Rated Supply Voltage |
24 V AC/DC 50/60 Hz |
| Supply Voltage Limits |
19.2…30 V DC
21.6…26.4 V AC |
| Current Consumption |
18 mA |
| Service Life |
100000 h at rated voltage and 25 °C |
| Surge Withstand |
1 kV IEC 61000-4-5 |
| Device Presentation |
Basic sub-assemblies |
| Protective Treatment |
TH |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op |
-40…158 °F (-40…70 °C) |
| Electrical Shock Protect Class |
Class II IEC 60536 |
| Standards |
UL 508
CSA C22.2 No 14
EN/IEC 60947-5-1
JIS C8201-5-1
EN/IEC 60947-1
EN/IEC 60947-5-4
JIS C8201-1 |
| Product Certifications |
LROS (Lloyds register of shipping)
CSA
GL
DNV
BV
RINA
UL Listed |
| Vibration Resistance |
5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance |
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Resistance To Fast Transients |
2 kV IEC 61000-4-4 |
