| Range Of Product |
Harmony XB5 |
| Product Or Component Type |

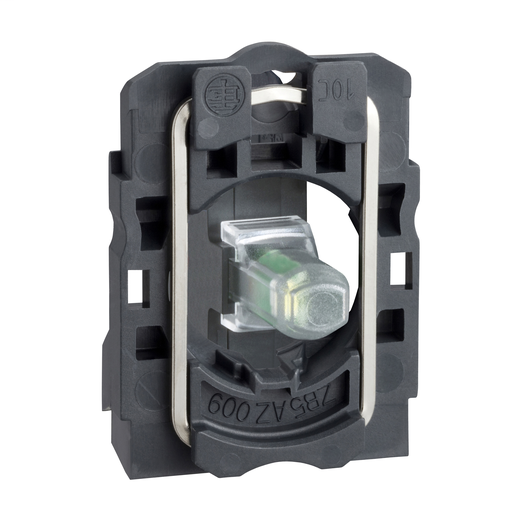

Complete body/light block assembly |
| Device Short Name |
ZB5 |
| Fixing Collar Material |
Plastic |
| Sale Per Indivisible Qty |
1 |
| Connections - Terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1 |
| Light Source |
Protected LED |
| Bulb Base |
Integral LED |
| Light Source Colour |
Blue |
| Cad Overall Width |
1.18 in (30 mm) |
| Cad Overall Height |
1.65 in (42 mm) |
| Cad Overall Depth |
1.26 in (32 mm) |
| Terminals Description ISO n°1 |
(X1-X2)PL |
| Product Weight |
0.05 lb(US) (0.022 kg) |
| Tightening Torque |
7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1 |
| Shape Of Screw Head |
Cross Philips no 1
Cross pozidriv No 1
Slotted flat Ø 4 mm
Slotted flat Ø 5.5 mm |
| Ui Rated Insulation Voltage |
600 V 3)EN 60947-1 |
| Uimp Rated Imp Wstd Voltage |
6 kV EN 60947-1 |
| Signalling Type |
Steady |
| Us Rated Supply Voltage |
24...120 V AC/DC 50/60 Hz |
| Supply Voltage Limits |
19.2…132 V DC
21.6…132 V AC |
| Service Life |
100000 h at rated voltage and 25 °C |
| Surge Withstand |
1 kV IEC 61000-4-5 |
| Device Presentation |
Basic sub-assemblies |
| Protective Treatment |
TH |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op |
-40…158 °F (-40…70 °C) |
| Electrical Shock Protect Class |
Class II IEC 60536 |
| Standards |
JIS C8201-5-1
EN/IEC 60947-5-4
CSA C22.2 No 14
EN/IEC 60947-5-1
EN/IEC 60947-1
UL 508
JIS C8201-1 |
| Product Certifications |
GL
BV
UL Listed
LROS (Lloyds register of shipping)
RINA
DNV
CSA |
| Vibration Resistance |
5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance |
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Resistance To Fast Transients |
2 kV IEC 61000-4-4 |
| Resist To Electromagn Fields |
9.14 V/m (10 V/m) IEC 61000-4-3 |
| Resist Electrostatic Dischrg |
6 kV on contact (on metal parts) IEC 61000-2-6
8 kV in free air (in insulating parts) IEC 61000-2-6 |
| Electromagnetic Emission |
Class B IEC 55011 |
| Category |
22469 - PUSHBUTTON,22MM ACCESSORIES-NEW |
| Discount Schedule |
CS2 |
| GTIN |
00785901590460 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
FR |
| Green Premium Status |
Green Premium product |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty |
18 months |
