ZBVJ69

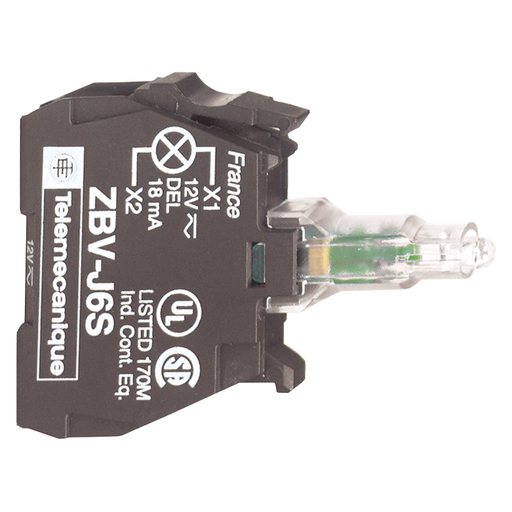

Blue light block for head Ø22 integral LED 12V screw terminal for lugs
This Harmony ZB, blue light block operates with an integral LED. It is supplied with 12V AC/DC and uses lugs terminals. It has a plastic body. It is compatible with Harmony XB4 and XB5. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Add to Quote CatalogueSpecifications
| Part Number | ZBVJ69 |
|---|---|
| UPC | 389110177602 |
| UPC11 | 38911017760 |
| EAN | 3389110177602 |
| Weight | 0.04 pound |
Characteristics
| Range Of Product | Harmony XB4 Harmony XB5 |
|---|---|
| Product Or Component Type | Light block |
| Device Short Name | ZBV |
| Sale Per Indivisible Qty | 5 |
| Connections - Terminals | Screw terminals for lug |
| Signalling Type | Steady |
| Light Source | Protected LED |
| Bulb Base | Integral LED |
| Light Block Supply | Direct |
| Light Source Colour | Blue |
| Us Rated Supply Voltage | 12 V AC/DC 50/60 Hz |
| Product Weight | 0.04 lb(US) (0.017 kg) |
| Supply Voltage Limits | 10…15 V DC 10.2…13.8 V AC |
| Current Consumption | 18 mA |
| Service Life | 100000 h at rated voltage and 25 °C |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| Mounting Of Block | Front mounting |
| Electrical Composition Code | M1 M2 M3 M4 M5 M6 M10 MF1 P1 P2 PF1 |
| Protective Treatment | TH |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -40…158 °F (-40…70 °C) |
| IP Degree Of Protection | IP20 IEC 60529 |
| Standards | JIS C8201-5-1 EN/IEC 60947-5-5 EN/IEC 60947-5-1 EN/IEC 60947-1 CSA C22.2 No 14 EN/IEC 60947-5-4 UL 508 JIS C8201-1 |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Resist To Electromagn Fields | 9.14 V/m (10 V/m) IEC 61000-4-3 |
| Resist Electrostatic Dischrg | 6 kV on contact (on metal parts) IEC 61000-4-2 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic Emission | Class B IEC 55011 |
| Us Rated Supply Voltage | 12 V |
| GTIN | 03389110177602 |
| Warranty | 18 months |
