ZBW050D69

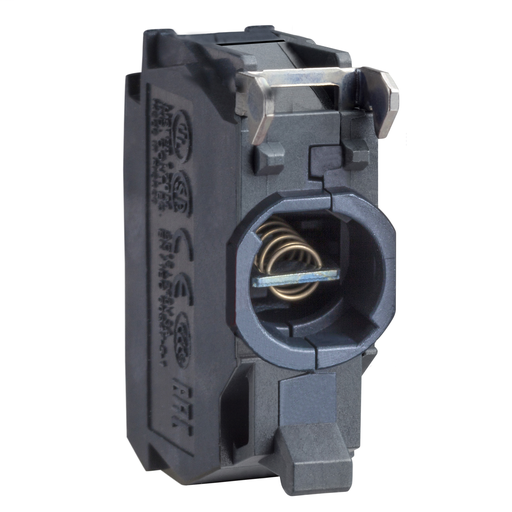

Blue light block for head Ø22 for BA9s bulb 400V screw terminal for lugs
Specifications
| Part Number | ZBW050D69 |
|---|---|
| UPC | 389110178548 |
| UPC11 | 38911017854 |
| EAN | 3389110178548 |
Characteristics
| Range Of Product | Harmony XB4 Harmony XB5 |
|---|---|
| Product Or Component Type | Light block |
| Device Short Name | ZBW |
| Connections - Terminals | Screw terminals for lug |
| Signalling Type | Steady |
| Light Source | LED |
| Bulb Base | BA 9s |
| Light Block Supply | Integrated transformer 6 V |
| Light Source Colour | Blue |
| Us Rated Supply Voltage | 400 V AC 50 Hz |
| Service Life | 100000 h at rated voltage and 25 °C |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| Protective Treatment | TH |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
| IP Degree Of Protection | IP20 IEC 60529 |
| Standards | EN/IEC 60947-5-1 JIS C8201-5-1 EN/IEC 60947-5-5 EN/IEC 60947-1 UL 508 EN/IEC 60947-5-4 CSA C22.2 No 14 JIS C8201-1 |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Resist To Electromagn Fields | 9.14 V/m (10 V/m) IEC 61000-4-3 |
| Resist Electrostatic Dischrg | 6 kV on contact (on metal parts) IEC 61000-4-2 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic Emission | Class B IEC 55011 |
| GTIN | 03389110178548 |
| Warranty | 18 months |
