XB5AA65C1

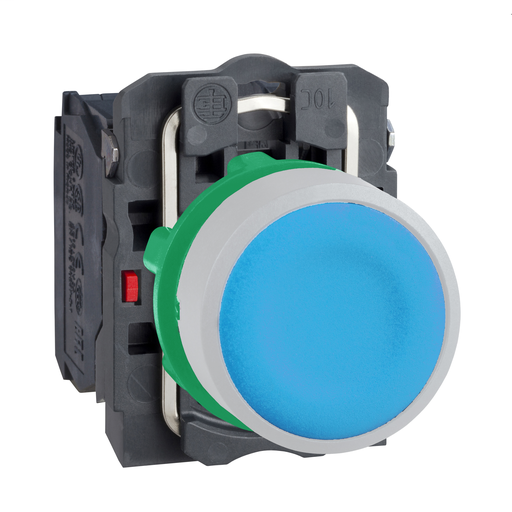

Blue flush pushbutton 1NO 1NC screw clamp cp white
This push-button provides a simple and robust control to machines and processes. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
Add to Quote CatalogueSpecifications
| Part Number | XB5AA65C1 |
|---|---|
| EAN | 3606489758066 |
| Availability | N |
| Lead Time | 20 |
| RoHS Compliant | Yes |
| Discount Schedule | CS2 |
| Depth | 2.05 inch |
| Height | 1.65 inch |
| Width | 1.18 inch |
Characteristics
| Range Of Product | Harmony XB5 |
|---|---|
| Product Or Component Type | Push-button |
| Device Short Name | XB5 |
| Bezel Material | Plastic colour plated white |
| Head Type | Standard |
| Fixing Collar Material | Plastic |
| Mounting Diameter | 0.87 in (22 mm) |
| Sale Per Indivisible Qty | 1 |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | spring return |
| Operator Profile | Blue flush, unmarked |
| Contacts Type And Composition | 1 NO + 1 NC |
| Contact Operation | Slow-break |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1 |
| Height | 1.65 in (42 mm) |
| Width | 1.18 in (30 mm) |
| Depth | 2.05 in (52 mm) |
| Terminals Description ISO n°1 | (21-22)NC (13-14)NO |
| Resistance High Press Washer | 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Contacts Usage | Standard contacts |
| Positive Opening | With EN/IEC 60947-5-1 appendix K |
| Operating Travel | 0.06 in (1.5 mm) NC changing electrical state) 0.10 in (2.6 mm) NO changing electrical state) 0.17 in (4.3 mm) total travel) |
| Operating Force | 3.5 N NC changing electrical state 3.8 N NO changing electrical state |
| Mechanical Durability | 10000000 cycles |
| Tightening Torque | 7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1 |
| Shape Of Screw Head | Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| Contacts Material | Silver alloy (Ag/Ni) |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Ith Cnvtl Free Air Therm Crrt | 10 A EN/IEC 60947-5-1 |
| Ui Rated Insulation Voltage | 600 V 3)EN/IEC 60947-1 |
| Uimp Rated Imp Wstd Voltage | 6 kV EN/IEC 60947-1 |
| Ie Rated Operational Current | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| Electrical Durability | 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Electrical Reliability | Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4 |
| Device Presentation | Complete product |
| Customizable | Yes |
| Customizable | 1 |
| Gcr Bridge | XB5AACUST05 |
| Compatibility Code | XB5 |
| Protective Treatment | TH |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -40…158 °F (-40…70 °C) |
| Overvoltage Category | Class II IEC 60536 |
| IP Degree Of Protection | IP66 IEC 60529 IP67 |
| Nema Degree Of Protection | NEMA 13 NEMA 4X |
| IK Degree Of Protection | IK03 IEC 50102 |
| Standards | EN/IEC 60947-5-4 EN/IEC 60947-1 CSA C22.2 No 14 EN/IEC 60947-5-1 JIS C8201-5-1 UL 508 JIS C8201-1 |
| Product Certifications | RINA BV GL UL Listed DNV LROS (Lloyds register of shipping) CSA |
| Vibration Resistance | 5 gn 2…500 Hz)IEC 60068-2-6 2 mm peak to peak 2…10 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
