ZB5AW563

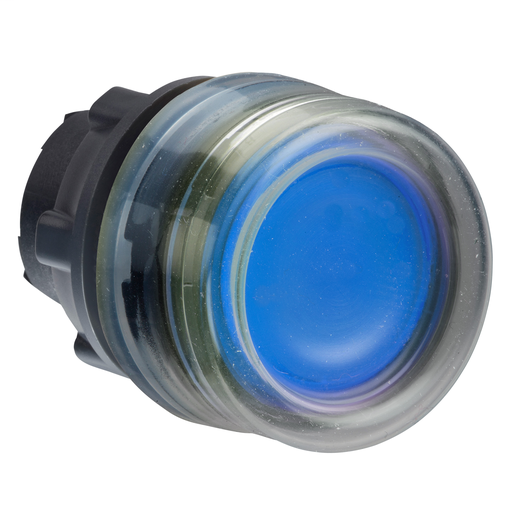

Blue flush illuminated pushbutton head Ø22 spring return for integral LED
This blue flush button head with clear boot provides an ergonomic interface for controlling your machines. It provides also a simple solution to prevent dirt and contaminants. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated head and clear colors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Add to Quote CatalogueSpecifications
| Part Number | ZB5AW563 |
|---|---|
| Country of Origin | FR |
| UPC | 785901388265 |
| UPC11 | 78590138826 |
| EAN | 3389110924077 |
| Availability | N |
| Lead Time | 20 |
| UNSPSC | 39122216 |
| ECCN | EAR99 |
| HTs Code | 8538908180 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS2 |
| Return Indicator | No |
| Weight | 0.04 pound |
Characteristics
| Range Of Product | Harmony XB5 |
|---|---|
| Product Or Component Type | Head for illuminated push-button |
| Device Short Name | ZB5 |
| Product Compatibility | Integral LED Not compatible with legend holder |
| Bezel Material | Dark grey plastic |
| Mounting Diameter | 0.87 in (22 mm) |
| Sale Per Indivisible Qty | 1 |
| Head Type | Standard |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | spring return |
| Operator Profile | Blue flush, unmarked |
| Operator Add Information | Clear boot |
| Cad Overall Width | 1.18 in (30 mm) |
| Cad Overall Height | 1.18 in (30 mm) |
| Cad Overall Depth | 1.46 in (37 mm) |
| Product Weight | 0.04 lb(US) (0.019 kg) |
| Resistance High Press Washer | 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Mechanical Durability | 10000000 cycles |
| Main Group | Illum push-button |
| Group Of Product | Flush push integral LED |
| Station Name | XALD 1...5 cut-outs XALK 2...5 cut-outs |
| Cap/Operator Or Lens Colour | Blue |
| Marking | Unmarked |
| Electrical Composition Code | M1 6 single front mounting integral LED M2 6 single and double front mounting integral LED M6 2 single front mounting integral LED and transformer M10 2 single front mounting integral LED MF1 2 single front mounting integral LED MR1 2 single rear mounting integral LED |
| Device Presentation | Basic sub-assemblies |
| Protective Treatment | TC |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -40…158 °F (-40…70 °C) |
| Overvoltage Category | Class II IEC 60536 |
| IP Degree Of Protection | IP66 IEC 60529 IP67 |
| Nema Degree Of Protection | NEMA 13 NEMA 4X |
| IK Degree Of Protection | IK05 EN 50102 |
| Standards | CSA C22.2 No 14 EN/IEC 60947-5-4 UL 508 GB 14048.5 EN/IEC 60947-1 JIS C8201-5-1 EN/IEC 60947-5-1 JIS C8201-1 |
| Product Certifications | RINA CSA BV UL Listed DNV LROS (Lloyds register of shipping) GL |
| Vibration Resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Category | 22467 - PUSHBUTTONS,22MM(PLASTIC) NEW |
| Discount Schedule | CS2 |
| GTIN | 00785901388265 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| Warranty | 18 months |
