ZB5APA2C0

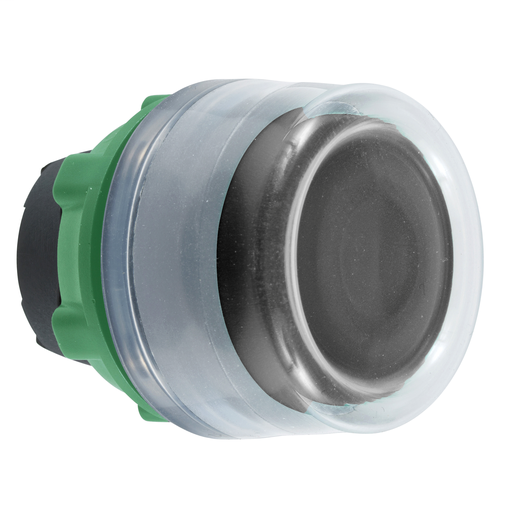

Black flush pushbutton head with clear boot cp grey
This clear silicone booted button head provides a simple solution to comply with hygiene requirement in food, beverage industries as well as healthcare and pharmaceuticals. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
Add to Quote CatalogueSpecifications
| Part Number | ZB5APA2C0 |
|---|---|
| EAN | 3606489768485 |
| Availability | N |
| Lead Time | 20 |
| RoHS Compliant | Yes |
| Discount Schedule | CS2 |
Characteristics
| Range Of Product | Harmony XB5 |
|---|---|
| Product Or Component Type | Head for non-illuminated push-button |
| Device Short Name | ZB5 |
| Product Compatibility | Not compatible with legend holder |
| Bezel Material | Plastic colour plated grey |
| Mounting Diameter | 0.87 in (22 mm) |
| Head Type | Standard |
| Sale Per Indivisible Qty | 1 |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | spring return |
| Operator Profile | Black flush, unmarked |
| Operator Add Information | Clear boot |
| Cad Overall Width | 1.18 in (30 mm) |
| Cad Overall Height | 1.18 in (30 mm) |
| Cad Overall Depth | 1.46 in (37 mm) |
| Mechanical Durability | 10000000 cycles |
| Protective Treatment | TH |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -40…158 °F (-40…70 °C) |
| Overvoltage Category | Class II IEC 60536 |
| IP Degree Of Protection | IP66 IEC 60529 IP67 IEC 60529 |
| Nema Degree Of Protection | NEMA 13 NEMA 4X |
| Resistance High Press Washer | 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK Degree Of Protection | IK03 IEC 50102 |
| Standards | EN/IEC 60947-1 EN/IEC 60947-5-1 EN/IEC 60947-5-4 UL 508 JIS C8201-5-1 CSA C22.2 No 14 JIS C8201-1 |
| Product Certifications | LROS (Lloyds register of shipping) RINA UL Listed DNV GL CSA BV |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration Resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
