| Product Or Component Type |

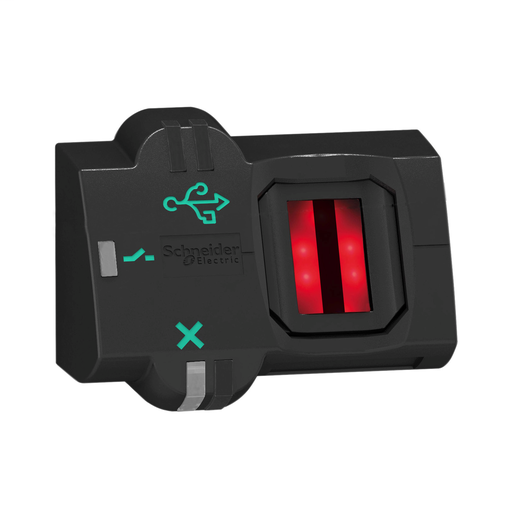

Biometric switch |
| Product Specific Application |
Industrial machines
Materials handling |
| Device Short Name |
XB5S |
| Bezel Material |
Dark grey plastic |
| Mounting Diameter |
0.87 in (22 mm) |
| Output Type |
PNP |
| Sale Per Indivisible Qty |
1 |
| IP Degree Of Protection |
IP20 EN/IEC 60529 rear face)
IP65 EN/IEC 60529 front face) |
| Type Of Operator |
Stay put |
| Operator Pos Information |
2 positions |
| Operator Profile |
fingerprint reader |
| Memory Usage |
200 users with up to 2 fingerprints per user |
| Software Designation |
XB5SSoft |
| Enclosure Material |
Polyamide PA66 |
| Cable Insulation Material |
PvR |
| Operating Position |
Flat surface installation
Horizontal position
Vertical surface installation |
| Function Of Module |
Bi-stable |
| Product Weight |
0.47 lb(US) (0.215 kg) |
| Marking |
CE |
| Port Protocol |
USB |
| Connector Type |
USB type A male 3.28 ft (1 m) |
| Local Signalling |
Output state indicator 1 LED green)
Error 1 LED red) |
| Short-Circuit Protection |
250 mA external fuse gG |
| [Us] Rated Supply Voltage |
24 V DC |
| Electrical Connection |
M12 connector 0.66 ft (0.2 m) |
| Supply Voltage Limits |
20…30 V DC |
| Protection Type |
Short-circuit
Overload protection
Reverse polarity |
| Maximum Switching Current |
200 mA |
| Ures Residual Voltage |
1 V closed state |
| Current Consumption |
<= 70 mA no-load |
| Delay First Up |
3 s + 0.5 ms per user registered |
| Delay Recovery |
1.5 s |
| Delay Response |
1.5 s |
| Range Of Product |
Harmony XB5S |
| Ambient Air Temp For Storage |
-13…158 °F (-25…70 °C) |
| Ambient Air Temp For Op |
23…122 °F (-5…50 °C) |
| Nema Degree Of Protection |
NEMA 12 |
| Standards |
IEC 61000-6-2
IEC 61000-6-4 |
| Product Certifications |
CSA
UL |
| Vibration Resistance |
+/- 3 mm 5…9 Hz)IEC 60068-2-6
1 gn 9…500 Hz)IEC 60068-2-6 |
| Shock Resistance |
50 gn 11 ms IEC 60068-2-27 |
| Category |
22471 - BIOMETRIC PUSHBUTTON DO NOT NEGOT. |
| Discount Schedule |
I |
| GTIN |
00785901236153 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
FR |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty |
18 months |
