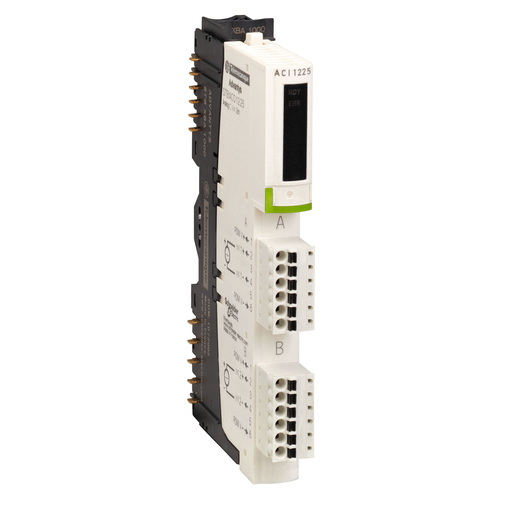

This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic analogue input kit is an accessory kit of Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). It has 2 analogue inputs (current 4mA to 20mA) with 10bit resolution. This product is compatible with most major fieldbus networks. It is an analogue input kit with a rated supply voltage of 24V DC and a current consumption of 30mA at 5V DC for logic bus. The response time is 5ms. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, ATEX category 3G, CE, UL, CSA and C-Tick. This kit is suitable for use with mounting base STBXBA1000 and power distribution module STBPDT3100/3105. The kit includes STBXTS1100, 6-terminal screw type connector, STBXBA1000 base, STBXTS2100, 6-terminal spring clamp connector and STBACI1225 module. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a master controller via a bus or communication network.
Add to Quote CataloguePart Number | STBACI1225K |
---|---|
Country of Origin | ID |
UPC | 785901609773 |
UPC11 | 78590160977 |
EAN | 3595863948387 |
Availability | S |
Lead Time | 58 |
UNSPSC | 32151601 |
ECCN | EAR99 |
HTs Code | 8538908180 |
Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
RoHS Compliant | Yes |
Discount Schedule | PC32 |
Return Indicator | Yes |
Depth | 2.76 inch |
Height | 0.55 inch |
Width | 5.05 inch |
Range Of Product | Modicon STB distributed I/O solution |
---|---|
Product Or Component Type | Basic analog input kit |
Kit Composition | STBXTS1100, 6-terminal screw type connector STBXBA1000 base STBXTS2100, 6-terminal spring clamp connector STBACI1225 module |
Analogue Input Type | Current 4...20 mA |
Analogue Input Number | 2 |
Analogue Input Resolution | 10 bits |
Type Of Filter | Single low pass input filter 25 Hz |
Absolute Maximum Input | 25 mA/50 V DC |
Response Time | 5 ms |
Cold Swapping | Yes |
Hot Swapping Fallback | No for basic NIMs |
Data Format | EN 61131-2 IEC 61131-2 |
Update Time | 10 ms |
Integral Linearity | +/- 0.2 %FS |
Differential Linearity | Monotonic |
Input Impedance | <= 300 Ohm |
Supply Current For Sensors | 100 mA per input channels |
Absolute Accuracy Error | +/- 0.5 % of full scale 25 °C |
Temperature Drift | +/-0.01 %/°C |
Insul Btwn Ch And Logic Bus | 1500 V for 1 minute |
Insul Btwn Ch And Sensor Bus | 30 V |
Addressing Requirement | 2 input words |
Product Compatibility | Mounting base STBXBA1000 Power distribution module STBPDT3100/3105 |
Us Rated Supply Voltage | 24 V DC |
Supply | Power distribution module |
Current Consumption | 30 mA 5 V DC logic bus |
Marking | CE |
Overvoltage Category | II |
Status Led | Module status (RDY) 1 LED Green) |
Depth | 2.76 in (70 mm) |
Height | 0.55 in (13.9 mm) |
Width | 5.05 in (128.3 mm) |
Product Certifications | C-tick UL CSA FM Class 1 Division 2 ATEX Cat 3G |
Pollution Degree | 2 IEC 60664-1 |
Operating Altitude | <= 6561.68 ft (2000 m) |
IP Degree Of Protection | IP20 EN 61131-2 class 1 |
Ambient Air Temp For Op | 32…140 °F (0…60 °C) |
Ambient Air Temp For Op | 32...140 °F without derating |
Ambient Air Temp For Storage | -40…185 °F (-40…85 °C) without derating |
Ambient Air Temp For Storage | -40...185 °F without derating |
Relative Humidity | 95 % 140 °F (60 °C) without condensation |
Vibration Resistance | +/-0.35 mm 10…58 Hz 3 gn 58…150 Hz 35 x 7.5 mm symmetrical DIN rail 5 gn 58…150 Hz 35 x 15 mm symmetrical DIN rail |
Shock Resistance | 30 gn 11 ms IEC 88 reference 2-27 |
Category | 18215 - ADVANTYS STB I/O |
Discount Schedule | PC32 |
GTIN | 00785901609773 |
Nbr. Of Units In Pkg. | 1 |
Country Of Origin | ID |
Green Premium Status | Green Premium product |
EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
