XVUC21BQ

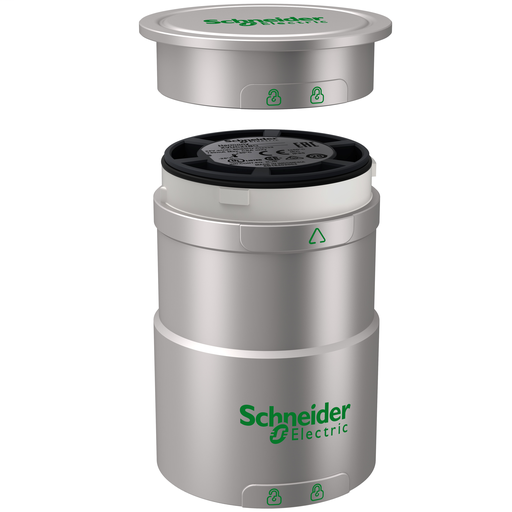

Base unit with top cover for modular tower lights, silver, Ø60, 24 V AC/DC
This silver base unit with top cover is designed to be fitted with indicator bank to create complete tower light. It is supplied with 24V AC/DC and has a mounting diameter of 60mm. It allows clear display of the status of your machines. It complies with CSA, UL, RoHS, CE standards. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.
Add to Quote CatalogueSpecifications
| Part Number | XVUC21BQ |
|---|---|
| Country of Origin | ID |
| UPC | 785901186717 |
| UPC11 | 78590118671 |
| EAN | 3606480555923 |
| Availability | N |
| Lead Time | 43 |
| UNSPSC | 32151501 |
| ECCN | EAR99 |
| HTs Code | 8531909001 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | XV |
| Return Indicator | Yes |
| Weight | 0.24 pound |
Characteristics
| Range Of Product | Harmony XVU |
|---|---|
| Product Or Component Type | Modular tower light |
| Beacon/Indicator Bk Unit Type | Base unit |
| Mounting Diameter | 2.36 in (60 mm) |
| Component Name | XVU |
| Housing Colour | Silver |
| Kit Composition | Base unit Cover |
| Fixing Mode | Direct or tube fixing |
| Material | PBT (polybutylene terephthalate) V-0 UL 94 ABS (acrylonitrile butadiene-styrene) V-0 UL 94 PC (polycarbonate) V-0 UL 94 |
| Assembly Style | Customer assembly, up to 5 units |
| Us Rated Supply Voltage | 24 V AC/DC - 15...10 % |
| Current Consumption | <= 400 mA |
| Length | 3.03 in (77 mm) |
| Product Weight | 0.24 lb(US) (0.11 kg) |
| Product Certifications | RoHS CSA UL CE |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -13…122 °F (-25…50 °C) |
| Vibration Resistance | 2 gn |
| IP Degree Of Protection | IP65 |
| Category | 22618 - XVU TOWER LIGHTS |
| Discount Schedule | XV |
| GTIN | 00785901186717 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | ID |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
