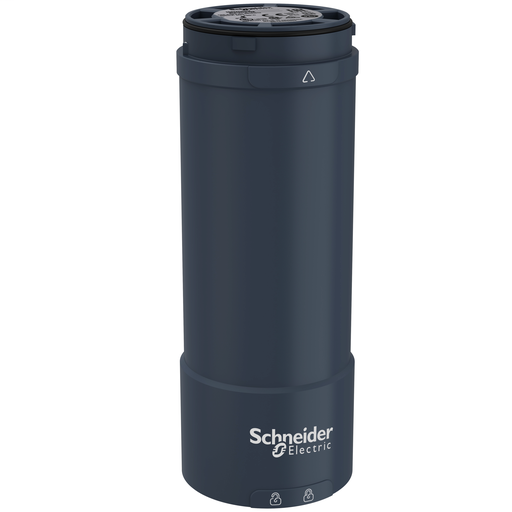

XVUC21M
Base unit with top cover for modular tower lights, black, Ø60, NPN, 100…240 V AC
This Harmony XVU black base unit with top cover is supplied with 100-240V AC and has a diameter of 60mm. This black base unit with top cover is designed to be fitted with indicator bank to create complete tower light and allow clear display of the status of your machines. It it is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Simple and modular design to allow for easy installation with illuminated unit via tube fixing and make complete tower light. It complies with international standards and certifications (CCC, CSA, UL, RoHS, EAC, CE standards).
Add to Quote CatalogueSpecifications
| Part Number | XVUC21M |
|---|---|
| Country of Origin | ID |
| UPC | 785901192664 |
| UPC11 | 78590119266 |
| EAN | 3606480555930 |
| Availability | N |
| Lead Time | 57 |
| UNSPSC | 32151501 |
| ECCN | EAR99 |
| HTs Code | 8531909001 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | XV |
| Return Indicator | Yes |
| Weight | 0.52 pound |
Characteristics
| Range Of Product | Harmony XVU |
|---|---|
| Product Or Component Type | Modular tower light |
| Beacon/Indicator Bk Unit Type | Base unit |
| Mounting Diameter | 2.36 in (60 mm) |
| Component Name | XVU |
| Housing Colour | Black |
| Kit Composition | Base unit NPN) Cover |
| Fixing Mode | Direct or tube fixing |
| Material | PBT (polybutylene terephthalate) V-0 UL 94 ABS (acrylonitrile butadiene-styrene) V-0 UL 94 PC (polycarbonate) V-0 UL 94 |
| Assembly Style | Customer assembly, up to 5 units |
| Us Rated Supply Voltage | 100...240 V AC +/- 10 % |
| Current Consumption | <= 400 mA |
| Length | 5.94 in (151 mm) |
| Product Weight | 0.52 lb(US) (0.235 kg) |
| Product Certifications | UL RoHS CSA CE CCC |
| Ambient Air Temp For Storage | -4…149 °F (-20…65 °C) |
| Ambient Air Temp For Op | 32…122 °F (0…50 °C) |
| Vibration Resistance | 2 gn |
| IP Degree Of Protection | IP65 |
| Electrical Shock Protect Class | Class II on base unit IEC 61140 |
| Category | 22618 - XVU TOWER LIGHTS |
| Discount Schedule | XV |
| GTIN | 00785901192664 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | ID |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
