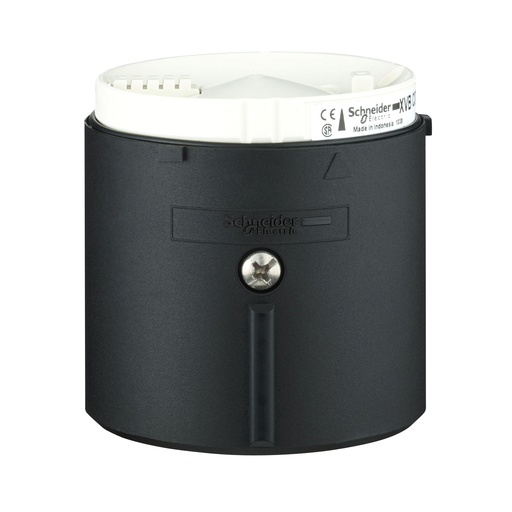

XVBC07
Base unit for modular tower lights, plastic, black, Ø70, bottom or side cable entry
This Harmony XVB base unit with bottom or side cable entry has a diameter of 70mm. This base unit is designed to be fitted with indicator bank to create complete tower light and allow clear display of the status of your machines. It is made of glass reinforced polyamide material and it allows the cable to entry from bottom or side. It complies with CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards with NEMA 4X protection. Simple and modular design to allow for easy installation with illuminated unit via tube fixing and make complete tower light. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).
Add to Quote CatalogueSpecifications
| Part Number | XVBC07 |
|---|---|
| Country of Origin | ID |
| UPC | 785901845034 |
| UPC11 | 78590184503 |
| EAN | 3389110845037 |
| Availability | N |
| Lead Time | 43 |
| UNSPSC | 32151503 |
| ECCN | EAR99 |
| HTs Code | 8531909001 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | XV |
| Return Indicator | Yes |
| Weight | 0.35 pound |
Characteristics
| Range Of Product | Harmony XVB Universal |
|---|---|
| Product Or Component Type | Base unit |
| Component Name | XVBC |
| Material | Glass reinforced polyamide base unit |
| Fixing Mode | Direct or tube fixing |
| Mounting Diameter | 2.76 in (70 mm) |
| Product Destination | Banks without flash discharge tube unit |
| Electrical Connection | 1 connector standard input |
| Cable Entry | Bottom or side entry |
| Assembly Style | Customer assembly, up to 5 units |
| Terminals Description ISO n°1 | (COM-2)PW (COM-3)PW (COM-1)PW (GND)GROUND (COM-4)PW (COM-5)PW |
| Product Weight | 0.35 lb(US) (0.16 kg) |
| Product Certifications | CCC UL 508 CSA C22-2 No 14 GOST |
| Standards | EN/IEC 60947-5-1 |
| Protective Treatment | TC |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Nema Degree Of Protection | NEMA 4X UL 508 indoor) |
| Category | 22611 - XVB-STACKLIGHTS |
| Discount Schedule | XV |
| GTIN | 00785901845034 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | ID |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
