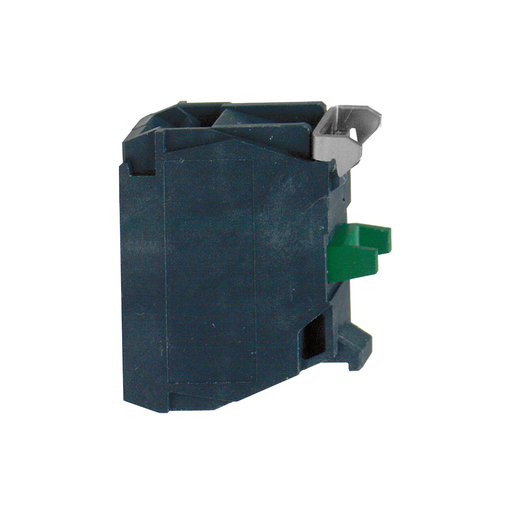

GS1AM110
Auxiliary contacts, TeSys GS, 1 NO, early break, front mounting, for GS2 with front/side handle
TeSys GS instantaneous auxiliary contact block for all 3-pole and 4-pole 50-1250A IEC and 30-800A UL fuse switch-disconnectors GS2D, GS2E, GS2F, GS2G, GS2J, GS2K, GS2L, GS2M, GS2N, GS2P, GS2Q, GS2S, GS2T, GS2V. It provides 1NO early break contact rated up to 3A/24V DC-13 and 3A/230V AC-15, for I/O and Test position signaling. Front mounting and connection by screw terminals. Multi standards certified (IEC, UL), it conforms to RoHS/REACh regulation.
Add to Quote CatalogueSpecifications
| Part Number | GS1AM110 |
|---|---|
| Country of Origin | FR |
| UPC | 785901367741 |
| UPC11 | 78590136774 |
| EAN | 3389110181760 |
| Availability | S |
| Lead Time | 3 |
| UNSPSC | 39122233 |
| ECCN | EAR99 |
| HTs Code | 8538908180 |
| Prop 65 | This product can expose you to chemicals including: Antimony oxide & Antimony trioxide which is known to the State of California to cause Carcinogen harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | I11 |
| Return Indicator | Yes |
| Weight | 0.03 pound |
Characteristics
| Range Of Product | TeSys |
|---|---|
| Device Short Name | GS1AM |
| Product Or Component Type | Auxiliary contact |
| Contact Application | O, I and test position signalling |
| Range Compatibility | TeSys GS fuse-switch disconnector FuPact GS fuse-switch disconnector |
| Contacts Type And Composition | 1 NO |
| Contact Operation | Early-break |
| Ith Cnvtl Free Air Therm Crrt | 10 A 104 °F (40 °C) |
| Ie Rated Operational Current | 6 A 120 V AC-15 3 A 240 V AC-15 1.8 A 400 V AC-15 1.5 A 480 V AC-15 2.8 A 24 V DC-13 1.4 A 48 V DC-13 0.55 A 125 V DC-13 0.27 A 250 V DC-13 0.15 A 400 V DC-13 |
| Mechanical Durability | 5 Mcycles |
| Electrical Durability | 1 Mcycles AC-15 |
| Switch Rated Current | 30 A 32 A 50 A 60 A 63 A 100 A 125 A 160 A 200 A 250 A 315 A 400 A 600 A 630 A 800 A 1250 A |
| Fuse Type | NFC DIN BS CC J |
| Type Of Operating Handle | External frontal External right side External left side |
| Mounting Location | Front face |
| Product Weight | 0.03 lb(US) (0.015 kg) |
| Category | 22640 - IEC DISCONNECT-GS1,LK3 |
| Discount Schedule | I11 |
| GTIN | 00785901367741 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | FR |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Compliant |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Warranty | 18 months |
