XVBC9M

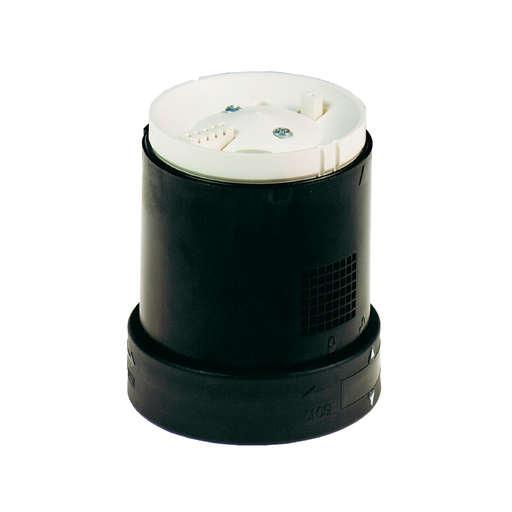

Audible unit for modular tower lights, plastic, Ø70, buzzer, continuous or intermitten tone,70… 90 dB, 120…230 V AC
This Harmony XVB audible buzzer unit is supplied with 12V to 230V AC. This indicating bank buzzer is an accessory designed as an audible and signalling unit for custom assembly. It has a 70mm diameter It has a continuous or intermittent signal and its sound acoustic level is adjustable. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).
Add to Quote CatalogueSpecifications
| Part Number | XVBC9M |
|---|---|
| Country of Origin | ID |
| UPC | 785901845973 |
| UPC11 | 78590184597 |
| EAN | 3389110845976 |
| Availability | S |
| Lead Time | 33 |
| UNSPSC | 32151501 |
| ECCN | EAR99 |
| HTs Code | 8531809041 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | XV |
| Return Indicator | Yes |
| Weight | 0.40 pound |
Characteristics
| Range Of Product | Harmony XVB Universal |
|---|---|
| Product Or Component Type | Indicator bank |
| Beacon/Indicator Bk Unit Type | Audible unit |
| Mounting Diameter | 2.76 in (70 mm) |
| Component Name | XVBC |
| Noise Level | 70…90 dB 1 m |
| Us Rated Supply Voltage | 120...230 V AC |
| Signalling Type | Continuous or intermittent buzzer |
| Assembly Style | Customer assembly, up to 5 units |
| Connections - Terminals | Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
| Ui Rated Insulation Voltage | 250 V IEC 60947-1 |
| Nominal Voltage Limit | 0.85...1.1 Un IEC 60947-5-1 |
| Current Consumption | < 25 mA |
| Uimp Rated Imp Wstd Voltage | 4 kV IEC 60947-1 |
| Fundamental Frequency | 2.8 kHz |
| Cad Overall Width | 2.76 in (70 mm) |
| Cad Overall Height | 2.48 in (63 mm) |
| Cad Overall Depth | 2.76 in (70 mm) |
| Product Weight | 0.40 lb(US) (0.18 kg) |
| Product Certifications | UL 508 GOST CCC CSA C22-2 No 14 |
| Standards | EN/IEC 60947-5-1 |
| Protective Treatment | TC |
| Ambient Air Temp For Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op | -13…122 °F (-25…50 °C) |
| Electrical Shock Protect Class | Class I on support tube IEC 61140 Class II on base unit IEC 61140 |
| IP Degree Of Protection | IP65 on fixing base XVBZ0. IEC 60529 IP66 on base unit IEC 60529 |
| Nema Degree Of Protection | NEMA 4X UL 508 indoor) |
| Category | 22611 - XVB-STACKLIGHTS |
| Discount Schedule | XV |
| GTIN | 00785901845973 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | ID |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
