| Range Of Product |
Modicon X80 |
| Product Or Component Type |

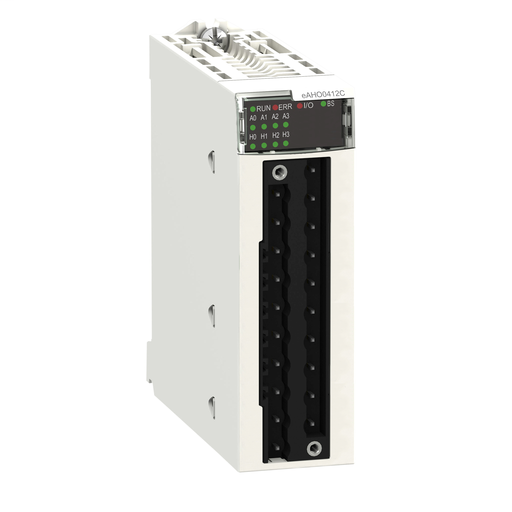

Analog output module |
| Application Specific I/O |
HART |
| Product Compatibility |
BMEP58... processor
BMEXBP... backplane
ABE7CPA21
Head module BMECRA31210
BMXFTB20... terminal block |
| Electrical Connection |
20 ways terminal block
Telefast |
| ISOlation Between Channels |
Isolated |
| Measurement Error |
0.1 % of full scale 25 °C
0.45 % of full scale - 25...60 °C |
| Temperature Drift |
45 ppm/°C |
| ISOlation Voltage |
1000 V DC 60 s between channels
1400 V DC 60 s between channels and ground
1400 V DC 60 s between channels and bus |
| Checks |
Broken wire detection |
| Load Impedance Ohmic |
600 Ohm 0...20 mA
570 Ohm 0...21 mA |
| Analogue Output Number |
4 |
| Analogue Output Type |
Current 4...20 mA |
| Analogue Output Resolution |
15 bits + sign |
| Topology |
Point-to-point |
| Function Available |
I/O mapping |
| Product Weight |
0.49 lb(US) (0.223 kg) |
| Ambient Air Temp For Op |
-13…140 °F (-25…60 °C) |
| Ambient Air Temp For Storage |
-40…185 °F (-40…85 °C) |
| Operating Altitude |
0...6561.68 ft (0...2000 m)
2000...5000 m with derating factor |
| Directives |
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
2014/34/EU - ATEX directive
2012/19/EU - WEEE directive |
| Product Certifications |
CE
UL
CSA
RCM
EAC
Merchant Navy
ATEX zone 2/22
IECEx zone 2/22 |
| Standards |
EN/IEC 61131-2
EN/IEC 61010-2-201
UL 61010-2-201
CSA C22.2 No 61010-2-201
IACS E10
EN/IEC 61000-6-5
EN/IEC 61850-3
EN/IEC 60079-0 |
| Environmental Characteristic |
Gas resistant class Gx ISA S71.04
Gas resistant class 3C4 IEC 60721-3-3
Dust resistant class 3S4 IEC 60721-3-3
Sand resistant class 3S4 IEC 60721-3-3
Salt resistant level 2 IEC 68252
Mold growth resistant class 3B2 IEC 60721-3-3
Fungal spore resistant class 3B2 IEC 60721-3-3
Hazardous location class I division 2 |
| Protective Treatment |
Conformal coating |
| Green Premium Status |
Green Premium product |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
