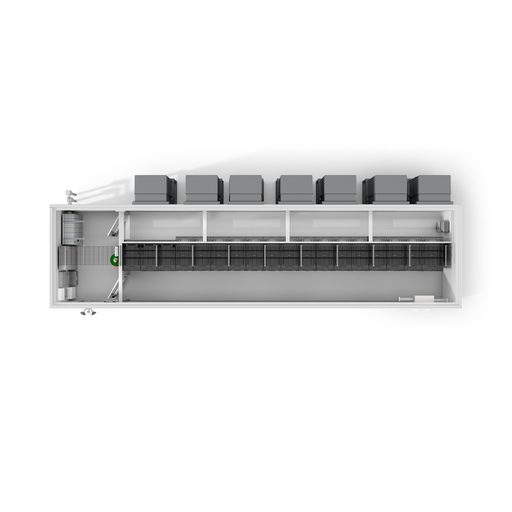

PFMIEC075W1N15C
All In One Module 75kW 15rack Wall Mount DX 480V
Specifications
| Part Number | PFMIEC075W1N15C |
|---|---|
| Depth | 539.37 inch |
| Height | 142.83 inch |
| Width | 153.94 inch |
| Weight | 59300.01 pound |
Characteristics
| Lead Time | Special Order - Call for Quoted Lead Times |
|---|---|
| Provided Equipment | Network Management Card |
| Colour | White |
| Depth | 539.37 in (1370 cm) |
| Height | 142.83 in (362.8 cm) |
| Product Weight | 59300.01 lb(US) (26898.01 kg) |
| Number Of Rack Free Space | 630 |
| Number Of Rack Unit | 42U |
| Width | 153.94 in (391 cm) |
| Network Frequency | 60 Hz +/- 0.5 / 1 / 2 / 4 / 6 / 8 % programmable |
| Input Voltage | 3 phase |
| Number Of Input Connectors | 1 Hard Wire 4-wire (3PH + G) |
| Rated Power In W | 75000 W |
| Bypass Type | Internal Bypass (Automatic and Manual) |
| Crest Factor | Unlimited |
| Output Frequency | 60 Hz programmable +/- 0.5 / 1 / 2 / 4 / 6 / 8% sync to mains |
| Power Per Rack | 5 kW |
| Output Voltage | 480 V 3 phase |
| Pdu Rated Current | 24 A |
| Pdu Type | Metered |
| Min Configurable Power In W | 75000 W |
| Wave Type | Sine wave |
| Product Certifications | UL Listed |
| Ambient Air Temp For Op | -4…113 °F (-20…45 °C) |
| Battery Type | VRLA |
| Battery Power In VAh | 0 VAh |
| Warranty | 1 year (parts only) |
