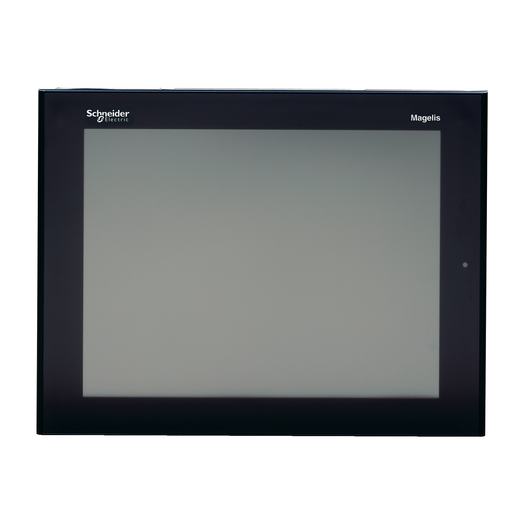

| Range Of Product |
Magelis XBTGT |
| Product Or Component Type |
Advanced touchscreen panel |
| Display Type |
Backlit colour TFT LCD |
| Display Colour |
65536 colours |
| Display Resolution |
800 x 600 pixels SVGA |
| Display Size |
12.1 inch |
| Software Type |
Configuration software |
| Software Designation |
Vijeo Designer |
| Operating System |
Magelis |
| Processor Name |
CPU RISC |
| Processor Frequency |
266 MHz |
| Memory Description |
512 kB SRAM back up of data lithium battery
32 MB flash EPROM application memory |
| Integrated Connection Type |
RJ45 COM2 serial link RS485 <= 187.5 kbit/s Siemens MPI (187.5 kbits/s)
male SUB-D 9 COM1 serial link RS232C/RS422/RS485 <= 115.2 kbits/s
removable screw terminal block power supply
RJ45 Ethernet TCP/IP
3 removable screw terminal block digital output
removable screw terminal block audio output
removable screw terminal block digital input
mini-jack audio input
RCA composite video input (NTSC/PAL)
2 USB type A master port (V1.1) |
| Resist Electrostatic Dischrg |
6 kV IEC 61000-4-2 level 3 |
| Cut-Out Dimensions |
301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm |
| Touch Sensitive Zone |
1024 x 1024 |
| Touch Panel |
Analogue |
| Backlight Lifespan |
50000 hours |
| Brightness |
8 levels via touch panel |
| Character Font |
Taiwanese (traditional Chinese)
Japanese (ANK, Kanji)
Korean
Chinese (simplified Chinese)
ASCII (European characters) |
| Us Rated Supply Voltage |
24 V DC |
| Supply |
External source |
| Supply Voltage Limits |
19.2…28.8 V |
| Inrush Current |
30 A |
| Power Consumption In W |
30 W |
| Local Signalling |
Normal operation or backlighting faulty 1 LED green or orange) |
| Number Of Pages |
Limited by internal memory capacity |
| Downloadable Protocols |
Telemecanique Modicon FIPWAY
Telemecanique Modicon Modbus Plus
Telemecanique Modicon Modbus TCP
Telemecanique Modicon Modbus
Mitsubishi Melsec third party protocols
Omron Sysmac third party protocols
Rockwell Automation Allen-Bradley third party protocols
Siemens Simatic third party protocols
Telemecanique Modicon Uni-TE |
| Realtime Clock |
Built-in |
| Data Storage Equipment |
1 Compact Flash card >= 1 GB |
| Use Of Slot |
For 1 fieldbus communication card (Device Net, Profibus DP) |
| Port Ethernet |
10BASE-T/100BASE-TX |
| Product Mounting |
Flush mounting |
| Fixing Mode |
By 4 spring clips
By 4 screw clamps |
| Front Material |
Aluminium alloy |
| Enclosure Material |
PPT |
| Marking |
CE |
| Width |
12.32 in (313 mm) |
| Height |
9.41 in (239 mm) |
| Depth |
2.20 in (56 mm) |
| Product Weight |
6.61 lb(US) (3 kg) |
| Immunity To Microbreaks |
10 ms |
| Standards |
IEC 61000-6-2
UL 508
UL 1604
CSA C22.2 No 14
EN 61131-2
FCC Class A |
| Product Certifications |
C-tick
UL Class 1 Division 2 T5
ATEX zone 2/22
CULus
CSA Class 1 Division 2 T5
UL Class 1 Division 2 T4A
CSA Class 1 Division 2 T4A |
| Ambient Air Temp For Op |
32…122 °F (0…50 °C) |
| Ambient Air Temp For Storage |
-4…140 °F (-20…60 °C) |
| Relative Humidity |
10…90 % without condensation |
| Operating Altitude |
< 6561.68 ft (2000 m) |
| IP Degree Of Protection |
IP20 IEC 60529 rear panel)
IP65 IEC 60529 front panel) |
| Nema Degree Of Protection |
NEMA 4X front panel (indoor use) |
