| Range Of Product |
Altivar |
| Product Or Component Type |

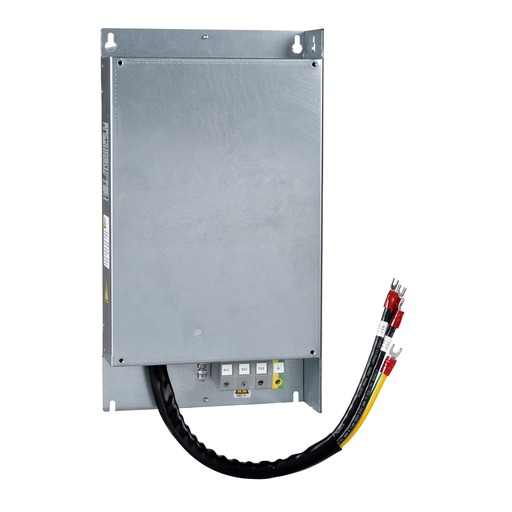

EMC input filter |
| Range Compatibility |
Altivar 61
Altivar 71 |
| Product Compatibility |
ATV61HU22M3
ATV61HU30M3
ATV61HU30N4
ATV61HU40M3
ATV61HU40N4
ATV71HU22M3
ATV71HU30M3
ATV71HU30N4
ATV71HU40M3
ATV71HU40N4
ATV71PU30N4Z
ATV71PU40N4Z
ATV71WU30N4
ATV71WU40N4 |
| Product Specific Application |
Radio interference input filter |
| In Rated Current |
26 A |
| Thermal Losses |
18 W 200...240 V AC ATV61/ATV71 variable speed drives
6 W 380...480 V AC ATV61/ATV71 variable speed drives |
| Network Number Of Phases |
Three phase |
| Electrical Connection |
Terminal 6 mm² AWG 8 |
| Tightening Torque |
13.28 lbf.in (1.5 N.m) |
| Maximum Earth Leakage Current |
8 mA 400 V 50 Hz
4.4 mA 400 V 50 Hz |
| Power Supply Voltage |
200…240 V
380…500 V |
| Tolerance |
10 % |
| Product Weight |
8.82 lb(US) (4 kg) |
| IP Degree Of Protection |
IP20
IP41 upper part) |
| Relative Humidity |
0…93 % IEC 68-2-3 |
| Ambient Air Temp For Op |
14…122 °F (-10…50 °C) |
| Ambient Air Temp For Storage |
-40…149 °F (-40…65 °C) |
| Operating Altitude |
3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m |
| Vibration Resistance |
1 gn 13…150 Hz)IEC 60068-2-6
1.5 mm peak to peak 3…13 Hz)IEC 60068-2-6 |
| Shock Resistance |
15 gn 11 ms EN/IEC 60068-2-27 |
| Standards |
EN 133200
EN/IEC 61800-3 |
| Category |
22135 - ATV61-71 ACCESSORIES |
| Discount Schedule |
CP4C |
| GTIN |
03389118065611 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
HU |
| REACh Free Of SVHC |
Yes |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free |
Yes |
| Mercury Free |
Yes |
| Warranty |
18 months |
