| Range Of Product |
Harmony iPC |
| Product Or Component Type |

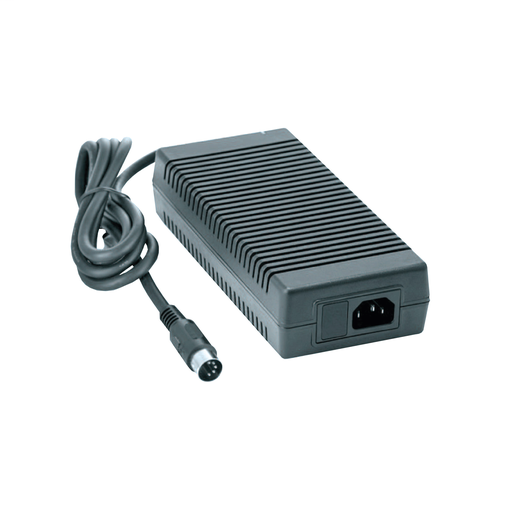

External power supply module |
| Accessory / Separate Part Cate |
Adaptation accessory |
| Accessory / Separate Part Dest |
HMIBM modular box PC
HMIDAD modular display adaptor |
| Input Voltage |
110...240 V AC 47...63 Hz |
| Output Voltage |
24 V DC |
| In Rated Current |
6.25 A |
| Range Compatibility |
Harmony iPC |
| Width |
7.44 in (189 mm) |
| Height |
3.52 in (89.5 mm) |
| Depth |
1.79 in (45.5 mm) |
| Ambient Air Temp For Op |
32…158 °F (0…70 °C) |
| Ambient Air Temp For Storage |
-40…185 °F (-40…85 °C) |
| Relative Humidity |
0…95 % non-condensing |
| Product Certifications |
CE
UL 60950
CULus
CSA 60950 |
| Category |
22575 - MAGELIS MC3 |
| Discount Schedule |
MC3 |
| GTIN |
00785901711865 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
TW |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
