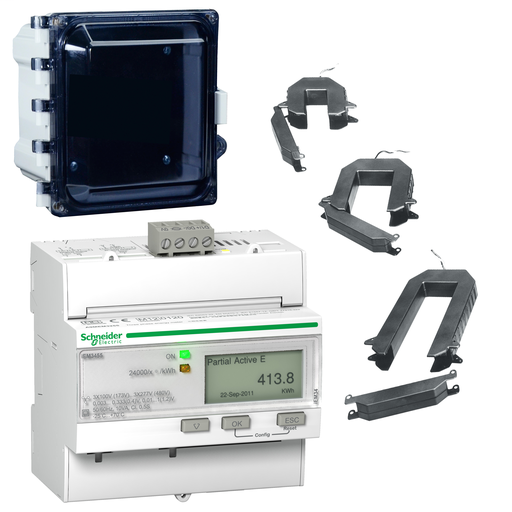

A9MEM3455 Meter, 3 Split Core 200A LVCTs, NEMA Type 4X Enclosure
This bundle kit includes components required for a retrofit energy metering solution This kit includes : IEM3455 Meter (A9MEM3455), quantity 3 – 100A Size 2 Split Core LVCTs (LVCT00201S), and one NEMA Type 4X enclosure (EM3500ENC). The A9MEM3455 energy meters is a three-phase DIN rail-mounted energy meter with an LCD display. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 0.5S per IEC 62053-21, and per ANSI C12.20. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. The rated current goes through a 0.333V or 1V transducer to be measured in this meter and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is Modbus with screw terminal support. There is one programmable digital input and one programmable digital output that can be used as a pulsed output. Certifications include EAC, CE and UL. Compatible with power management software to take advantage of the IoT digital power installation. The EM3500ENC enclosure offers a mounting option for Schneider Electric EM35xx Series energy meters that helps protect from tampering and the elements. The enclosure is equipped with DIN rail mounting hardware for easy installation and a NEMA 4X rating for durability.
Add to Quote CatalogueSpecifications
| Part Number | EMKA934553L002014X |
|---|---|
| Country of Origin | US |
| Availability | N |
| Lead Time | 5 |
| ECCN | EAR99 |
| HTs Code | 9028300000 |
| Discount Schedule | PL1 |
Characteristics
| Product Or Component Type | Energy meter kit |
|---|---|
| Poles Description | 3P + N 1P + N 3P |
| Type Of Measurement | Active and reactive energy Active and reactive power Current Voltage |
| Metering Type | Active, reactive, apparent energy (signed, four quadrant) |
| Device Application | Sub billing Multi-tariff Partial meter |
| Rated Voltage | 100…277 V +/- 20 % 173…480 V +/- 20 % |
| Network Frequency | 60 Hz 50 Hz |
| Technology Type | Electronic |
| Display Type | LCD display |
| Current Transformer Type | Split core balance |
| In Rated Current | 200 A |
| Measurement Accuracy | 1 % 10...100 % |
| Enclosure Mounting | Wall mounted |
| Communication Port Protocol | Modbus RTU 9.6, 19.2 and 38.4 kbauds even/odd or none |
| Communication Port Support | Screw terminal block RS485 |
| Local Signalling | Green indicator light power ON Yellow flashing LED accuracy checking alarm overload Yellow indicator light communications are active on the Modbus port (Modbus) |
| Mounting Mode | Clip-on |
| Mounting Support | DIN rail |
| Connections - Terminals | Current circuit screw terminals 0.01 in² (6 mm²) Voltage circuit screw terminals 0.00 in² (2.5 mm²) Input/output circuit screw terminals 0.00 in² (1.5 mm²) Communication screw terminals 0.00 in² (2.5 mm²) |
| Tightening Torque | Input/output circuit 4.43 lbf.in (0.5 N.m) Philips Voltage circuit 4.43 lbf.in (0.5 N.m) Philips Current circuit 7.08 lbf.in (0.8 N.m) pozidriv Communication 4.43 lbf.in (0.5 N.m) Philips |
| Provided Equipment | 1 energy meter 3 x 200 A current transformer 1 enclosure |
| Product Certifications | ANSI UL CSA |
| Nema Degree Of Protection | NEMA 4X |
| Ambient Air Temp For Op | -13…158 °F (-25…70 °C) |
