| Range Of Product |
Harmony ST6 |
| Product Or Component Type |

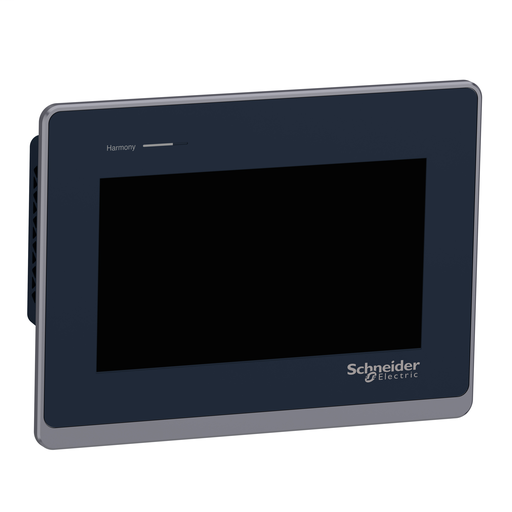

Touch panel screen |
| Software Designation |
EcoStruxure Operator Terminal Expert |
| Processor Name |
ARM Cortex-A8 |
| Display Size |
7 inch |
| Display Type |
Colour TFT LCD |
| Display Colour |
16 million colours |
| Display Resolution |
800 x 480 pixels WVGA |
| Touch Panel |
Single touch analogue resistive |
| Backlight Lifespan |
50000 hours white |
| Brightness |
16 levels |
| Character Font |
ASCII
ASCII (European characters)
Chinese (simplified Chinese)
Japanese (ANK, Kanji)
Katakana
Korean
Taiwanese (traditional Chinese) |
| [Us] Rated Supply Voltage |
24 V DC +/- 20 % |
| Inrush Current |
30 A |
| Local Signalling |
Status LED green, steady offline
Status LED green, steady operating
Status LED green, flashing operating
Status LED green, faded stand-by
Status LED orange, flashing software starting up
Status LED red, steady power supply (ON)
Status LED red, flashing operating
Status LED red, off power supply (OFF) |
| Power Consumption In W |
9 W |
| Number Of Pages |
200 application pages |
| Processor Frequency |
800 MHz |
| Port Ethernet |
10/100BASE |
| Memory Description |
Device memory 1 GB
User data memory 128 MB
Backup memory 512 kB |
| Integrated Connection Type |
1 COM1 serial link - 1 SUB-D 9-pin female - RS232C 2400...115200 bps)bottom
1 COM2 serial link - female RJ45 - RS485 2400...115200 bps)back
COM2 serial link 2400...187500 bps)back
1 USB 2.0 type Abottom
1 USB 2.0 type micro B
2 Ethernet |
| Supply |
External supply |
| Realtime Clock |
Built-in 0...50 °C
Built-in 10...90 % RH |
| Downloadable Protocols |
Modbus
Uni-TE
Third party protocols |
| Product Brand |
Schneider Electric Modicon
Mitsubishi Melsec
Omron Sysmac
Rockwell Automation Allen-Bradley
Siemens Simatic |
| Fixing Mode |
By 4 screws 1.6...5 mm thick panel UL 61010-2-201
By 4 screws EN 61131-2
By 4 screws IEC 61000-6-2 |
| Enclosure Material |
PC |
| Front Material |
Aluminium |
| Marking |
CE |
| Cut-Out Dimensions |
190 x 135 mm panel cut dimension |
| Height |
6.02 in (153 mm) |
| Width |
8.19 in (208 mm) |
| Depth |
1.77 in (45 mm) |
| Product Weight |
1.76 lb(US) (0.8 kg) |
| Immunity To Microbreaks |
5 ms |
| Standards |
EN 61000-6-4
EN 61000-6-2
EN 61131-2
UL 61010-2-201
CSA C22.2 No 61010-2-201 |
| Product Certifications |
CSA
CE
China RoHS
REACH |
| Directives |
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility |
| Ambient Air Temp For Op |
32…122 °F (0…50 °C) |
| Ambient Air Temp For Storage |
-4…140 °F (-20…60 °C) |
| Relative Humidity |
10…90 % non-condensing |
| Operating Altitude |
6561.68 ft (2000 m) |
| IP Degree Of Protection |
IP20 IEC 61131-2 rear panel)
IP65 IEC 61131-2 front panel) |
| Nema Degree Of Protection |
NEMA 4 front panel (indoor use)
NEMA 13 front panel (in enclosure) |
| Shock Resistance |
147 m/s² 11 ms X, Y, Z directions for 3 times)EN/IEC 61131-2 |
| Vibration Resistance |
+/- 3.5 mm 5…9 Hz)X, Y, Z directions for 10 cycles (approx. 100 min) EN/IEC 61131-2
9.8 m/s² 9…150 Hz) |
| Electromagnetic Compatibility |
Electrical fast transient/burst immunity test 2 kV power ports) IEC 61000-4-4
Electrical fast transient/burst immunity test 1 kV signal ports)
Electrostatic discharge immunity test 6 kV contact discharge) EN/IEC 61000-4-2 level 3
Electrostatic discharge immunity test 8 kV air discharge) |
| Green Premium Status |
Green Premium product |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
