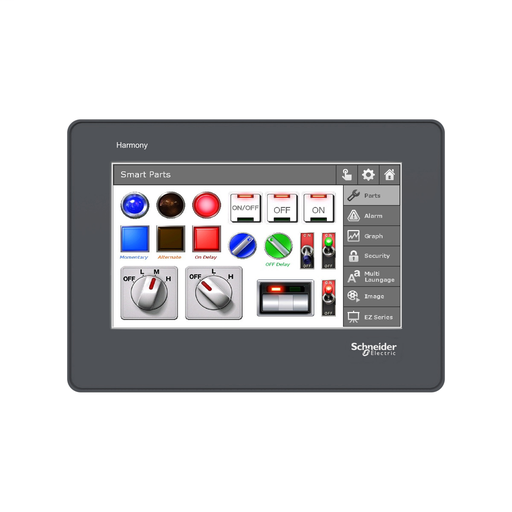

HMISTO705
4.3″ wide screen touch panel, RS-232 terminal block
This Magelis STO small touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 4.3″ color TFT LCD display with, 480 x 272 pixels and 26MB EPROM. It also has 1 host + 1 mini-B USB ports and 1 RS232C / RS485 port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays color graphic pages. Its RS485 host port makes it ideal to supervise and control simple systems and machines.
Add to Quote CatalogueSpecifications
| Part Number | HMISTO705 |
|---|---|
| Country of Origin | CN |
| UPC | 785901842835 |
| UPC11 | 78590184283 |
| EAN | 3606480920899 |
| Availability | N |
| Lead Time | 24 |
| UNSPSC | 43211506 |
| HTs Code | 8537109170 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | MC2 |
| Return Indicator | Yes |
| Weight | 0.49 pound |
Characteristics
| Range Of Product | Harmony STO & STU |
|---|---|
| Product Or Component Type | Touch panel screen |
| Software Designation | EcoStruxure Operator Terminal Expert |
| Operating System | Harmony |
| Display Size | 4.3 inch |
| Display Type | Colour TFT LCD |
| Display Colour | 65536 colours |
| Display Resolution | 480 x 272 pixels |
| Touch Panel | Analogue |
| Backlight Lifespan | 50000 hours white |
| Brightness | 16 levels via touch panel |
| Character Font | ASCII (European characters) Chinese (simplified Chinese) Korean Japanese (ANK, Kanji) Cyrillic Taiwanese (traditional Chinese) |
| [Us] Rated Supply Voltage | 12...24 V DC - 10...20 % |
| Power Consumption In W | 7.5 W |
| Number Of Pages | 8999 |
| Memory Description | Back up of data 512 kB Application memory 26 MB |
| Integrated Connection Type | 1 USB 2.0 type mini B 1 USB 2.0 type A 1 serial link - 9-pin terminal block - RS232C 2400...115200 bps) |
| Supply | External source |
| Realtime Clock | With RTC-battery set optional |
| Downloadable Protocols | Third party protocols Modbus |
| Range Compatibility | MitsubishI Siemens Omron Allen-Bradley |
| Fixing Mode | By 2 installation fasteners 1.5 to 6 mm thick panel |
| Enclosure Material | PPT |
| Front Material | Plastic |
| Cut-Out Dimensions | 77.5 x 112.5 mm 66 x 105 mm with mounting adaptor |
| Product Weight | 0.49 lb(US) (0.22 kg) |
| Standards | ANSI/ISA 12.12.01 CSA C22.2 No 142 EN 61000-6-2 CSA C22.2 No 213 UL 61010-1 EN 61131-2 EN 61000-6-4 UL 61010-2-201 |
| Product Certifications | KCC CE UL C-tick ATEX zone 2/22 CUL |
| Directives | 2002/96/EC - WEEE directive 1907/2006/EC - REACH directive 2002/95/EC - RoHS directive |
| Ambient Air Temp For Op | 32…122 °F (0…50 °C) |
| Ambient Air Temp For Storage | -4…140 °F (-20…60 °C) |
| Relative Humidity | 10…90 % without condensation |
| Operating Altitude | 6561.68 ft (2000 m) |
| IP Degree Of Protection | IP65f front panel) IP20 rear panel) |
| Nema Degree Of Protection | NEMA 4X/13 front panel indoor use) |
| Shock Resistance | 15 gn 11 msIEC 61131-2 |
| Vibration Resistance | 1 gn 5…150 Hz) IEC 61131-2 3.5 mm constant amplitude 5…150 Hz) IEC 61131-2 |
| Electromagnetic Compatibility | Resistance to radiated electromagnetic fields 10 V/m 80 MHz...2.7 GHz) Resistance to electrostatic discharge 8 kV air discharge)level 3 EN 61000-4-2 Resistance to electrostatic discharge 6 kV direct contact)level 3 EN 61000-4-2 |
| Category | 22569 - MAGELIS XBT-GT (AND XBT-G) |
| Discount Schedule | MC2 |
| GTIN | 00785901842835 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | CN |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
Documents
- Product Environmental (ENVPEP1511015EN)
- Marine Certificate (DNVGL-TAA000002W_HMIGTO-HMISTO)
- Marine Certificate (LR_C1210041E2_GTO_STO_SCU_STU)
- Marine Certificate (Merchant_Navy_HMI_IS)
- User Guide (EIO0000002263)
- User Guide (NHA87721)
- Certificate (HazLoc_cUL_ALL)
- Certificate (HazLoc_UL_ALL)
- Product Datasheet (pdf)
