| Range Of Product |
Harmony SCU |
| Product Or Component Type |

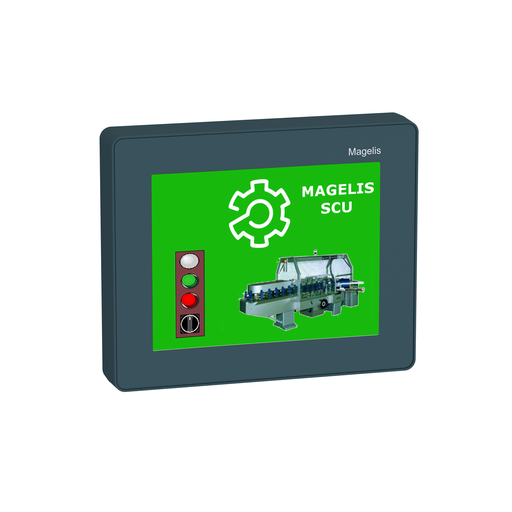

Small touchscreen display HMI |
| Display Size |
3.5 inch |
| Pixel Resolution |
320 x 240 pixels QVGA |
| Display Type |
Backlit LED colour TFT LCD |
| Touch Panel |
Analogue |
| Backlight Lifespan |
50000 hours 65536 colours |
| Brightness |
16 levels via touch panel |
| View Angle Horiz X Vert |
60° left
60° right
40° top
60° bottom |
| Character Font |
Korean
ASCII
Taiwanese (traditional Chinese)
Chinese (simplified Chinese)
Japanese (ANK, Kanji) |
| Width |
3.84 in (97.6 mm) |
| Depth |
3.15 in (80 mm) |
| Product Weight |
1.17 lb(US) (0.53 kg) |
| Category |
22569 - MAGELIS XBT-GT (AND XBT-G) |
| Discount Schedule |
MC2 |
| GTIN |
03595864153285 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
CN |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
