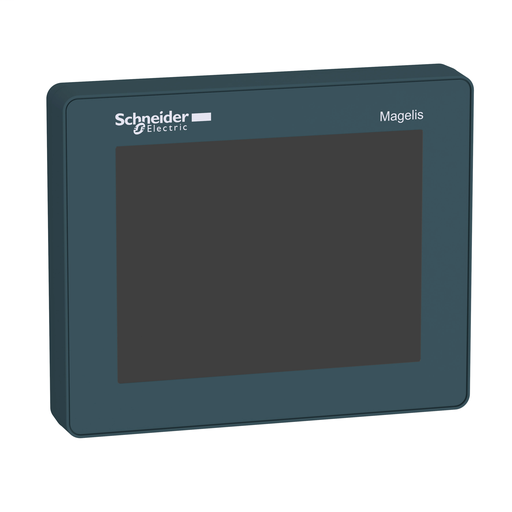

3in5 small touchscreen display front module Backlight LED Color TFT LCD
This product is part of the Harmony SCU range, an offer of HMI controllers from 3.5 to 5.7inch colour screens. The HMI small touchscreen features 3.5inch QVGA backlit LED colour TFT LCD display and supports 320 x 240 pixels resolution. It supports Korean, Chinese (simplified Chinese), Japanese (ANK, Kanji), ASCII and Taiwanese (traditional Chinese) character fonts. It supports 65536 colours with 50000 hours of backlight lifespan. The analogue touch panel with 16 levels brightness provides four viewing angles 60° left, 60° right, 40° top, 60° bottom in horizontal x vertical. Its dimensions are 97.6mm (width) x 80mm (depth) and weighs 0.53kg. The integrated design of Harmony SCU delivers maximum functionality while keeping installation easy. Designed for small machines and simple processes control, its state-of-the-art display provides clear readability. The Harmony SCU (formerly known as Magelis SCU) is designed to operate with EcoStruxure™ Machine Expert. It offers functionality for control of small machines and simple processes, while saving up to 30% in installation and ownership costs.
Add to Quote CatalogueSpecifications
| Part Number | HMIS65 |
|---|---|
| Country of Origin | CN |
| UPC | 785901142386 |
| UPC11 | 78590114238 |
| EAN | 3595864149042 |
| Availability | N |
| Lead Time | 35 |
| UNSPSC | 43211715 |
| HTs Code | 8537109170 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | MC2 |
| Return Indicator | No |
| Depth | 3.15 inch |
| Width | 3.84 inch |
| Weight | 1.17 pound |
Characteristics
| Range Of Product | Harmony SCU |
|---|---|
| Product Or Component Type | Small touchscreen display HMI |
| Display Size | 3.5 inch |
| Pixel Resolution | 320 x 240 pixels QVGA |
| Display Type | Backlit LED colour TFT LCD |
| Touch Panel | Analogue |
| Backlight Lifespan | 50000 hours 65536 colours |
| Brightness | 16 levels via touch panel |
| View Angle Horiz X Vert | 60° left 60° right 40° top 60° bottom |
| Character Font | Korean Chinese (simplified Chinese) Japanese (ANK, Kanji) ASCII Taiwanese (traditional Chinese) |
| Width | 3.84 in (97.6 mm) |
| Depth | 3.15 in (80 mm) |
| Product Weight | 1.17 lb(US) (0.53 kg) |
| Category | 22569 - MAGELIS XBT-GT (AND XBT-G) |
| Discount Schedule | MC2 |
| GTIN | 00785901142386 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | CN |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
