9001KS63B
30MM SELECTOR SWITCH 3 POSITION

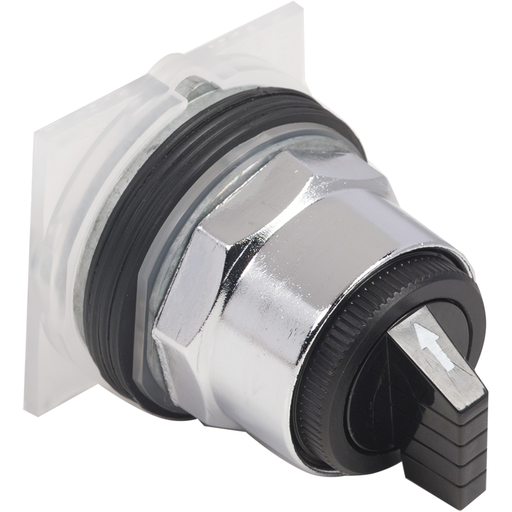

This Harmony 9001K, black selector switch with C cam has 3 positions, operates with spring return from left to center position mechanism. It has a chromium-plated metal bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Add to Quote CatalogueSpecifications
| Part Number | 9001KS63B |
|---|---|
| Country of Origin | MX |
| UPC | 785901322405 |
| UPC11 | 78590132240 |
| EAN | 3389118039414 |
| Availability | S |
| Lead Time | 4 |
| UNSPSC | 39122216 |
| ECCN | EAR99 |
| HTs Code | 8538908180 |
| Prop 65 | This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS1 |
| Return Indicator | Yes |
Characteristics
| Range Of Product | Harmony 9001K |
|---|---|
| Product Or Component Type | Selector switch |
| Device Short Name | K |
| Type Of Operator | spring return |
| Operator Profile | Black standard knob |
| Bezel Material | Chromium plated metal |
| Mounting Diameter | 1.18 in (30 mm) |
| Operator Pos Information | 3 positions |
| Contacts Type And Composition | Without contact block |
| Device Presentation | Basic element |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Product Certifications | CSA LR24590 class 3211 03 UL listed file E42259 CCN NKCR CE |
| Category | 21426 - 9001 K (NOT KA,KM,KX) |
| Discount Schedule | CS1 |
| GTIN | 00785901322405 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| Green Premium Status | Green Premium product |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
