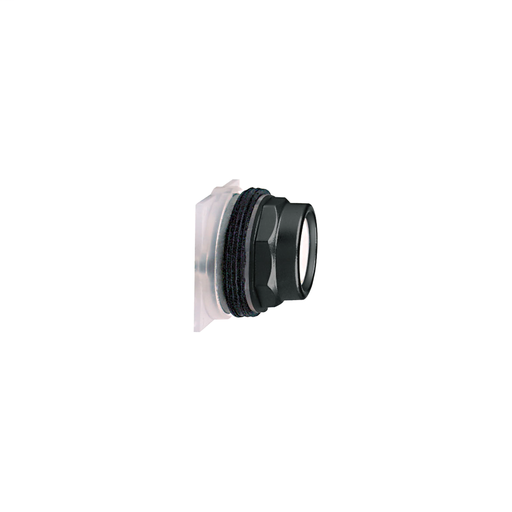

9001SKR3U
30MM PUSH BUTTON HEAD NO GUARD
This Harmony 9001SK, modular projecting push button with set of 7 color caps has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Add to Quote CatalogueSpecifications
| Part Number | 9001SKR3U |
|---|---|
| Country of Origin | MX |
| UPC | 785901513605 |
| UPC11 | 78590151360 |
| EAN | 3389118036819 |
| Availability | S |
| Lead Time | 5 |
| UNSPSC | 39122216 |
| HTs Code | 8538908180 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS1 |
| Return Indicator | Yes |
| Weight | 0.11 pound |
Characteristics
| Range Of Product | Harmony 9001SK |
|---|---|
| Product Or Component Type | Head for spring return push-button |
| Device Short Name | 9001SK |
| Operator Profile | projecting, unmarked |
| Operator Add Information | Set of 7 color caps |
| Mounting Diameter | 1.18 in (30 mm) |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | spring return |
| Product Weight | 0.11 lb(US) (0.05 kg) |
| Category | 21429 - 9001 SK,SKY |
| Discount Schedule | CS1 |
| GTIN | 00785901513605 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
