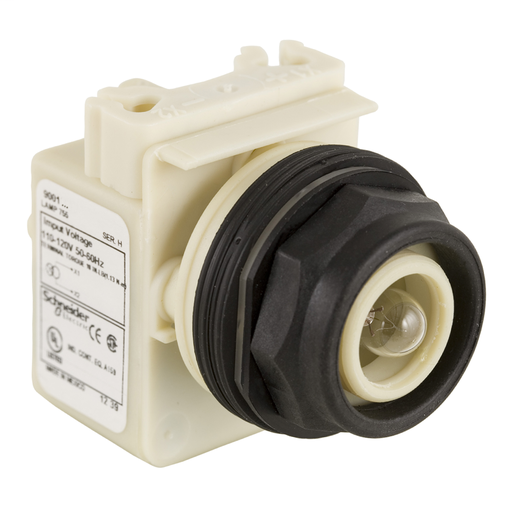

30MM PILOT LIGHT TRANSFORMER 120V
This pilot light is part of the range of control and signaling units, Harmony 9001SK diameter 30mm plastic. It has a double insulated bezel and is delivered without color cap. It is supplied via internal transformer with 110V to 120V AC and it is connected with simple screw-clamp connections. Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It is easily installed into a standard 30mm diameter panel cut-outs. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Add to Quote CatalogueSpecifications
| Part Number | 9001SKP1 |
|---|---|
| Country of Origin | MX |
| UPC | 785901458241 |
| UPC11 | 78590145824 |
| EAN | 3389118037724 |
| Availability | S |
| Lead Time | 4 |
| UNSPSC | 39121534 |
| ECCN | EAR99 |
| HTs Code | 8531809026 |
| Prop 65 | This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov |
| RoHS Compliant | Yes |
| Discount Schedule | CS1 |
| Return Indicator | Yes |
Characteristics
| Product Or Component Type | Pilot light |
|---|---|
| Light Block Supply | Via transformer 110 V AC 50/60 Hz Via transformer 120 V AC 50/60 Hz |
| Bezel Material | Plastic |
| Mounting Diameter | 1.18 in (30 mm) |
| Shape Of Signaling Unit Head | Round |
| Bulb Base | BA 9s |
| Operating Mode | Normal |
| Protective Treatment | TC |
| IP Degree Of Protection | IP66 |
| Category | 21429 - 9001 SK,SKY |
| Discount Schedule | CS1 |
| GTIN | 00785901458241 |
| Nbr. Of Units In Pkg. | 1 |
| Country Of Origin | MX |
| Green Premium Status | Green Premium product |
| REACh Free Of SVHC | Yes |
| EU RoHs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty | 18 months |
