| Range Of Product |
Harmony 9001K |
| Product Or Component Type |

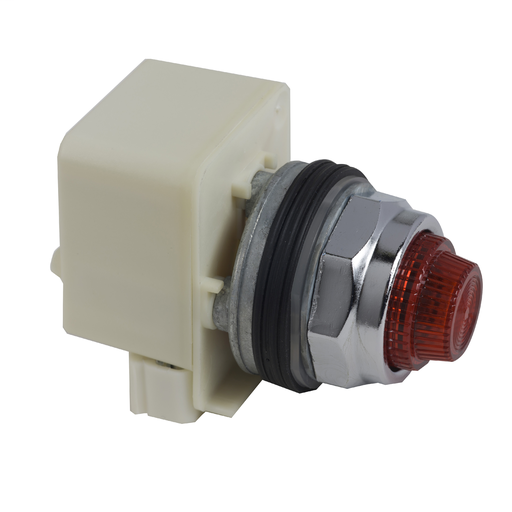

Pilot light |
| Device Short Name |
9001K |
| Bezel Material |
Chromium plated metal |
| Mounting Diameter |
1.18 in (30 mm) |
| Shape Of Signaling Unit Head |
Round |
| Lens Type |
Fresnel plastic |
| Cap/Operator Or Lens Colour |
Red |
| Light Source |
Red LED |
| Bulb Base |
BA 9s |
| Light Block Supply |
Via integral transformer 220...240 V AC 50/60 Hz 6 V) |
| Connections - Terminals |
Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1 |
| Tightening Torque |
7.08 lbf.in (0.8 N.m) IEC 60947-1 |
| Shape Of Screw Head |
Cross slotted |
| Operating Position |
Any position |
| Ui Rated Insulation Voltage |
250 V 2)IEC 60947-1 |
| Uimp Rated Imp Wstd Voltage |
2.5 kV IEC 60947-1 |
| Short-Circuit Protection |
10 A cartridge fuse IEC 60947-5-1 |
| Ith Cnvtl Free Air Therm Crrt |
10 A |
| Cad Overall Width |
2.13 in (54 mm) |
| Cad Overall Height |
2.76 in (70 mm) |
| Cad Overall Depth |
1.65 in (42 mm) |
| Product Weight |
0.46 lb(US) (0.21 kg) |
| Standards |
EN/IEC 60947-1
CSA C22.2 No 14
JIS C 852
EN/IEC 60947-5-4
EN/IEC 60947-5-1
JIS C8201-5-1
UL 508
JIS C8201-1 |
| Product Certifications |
NEMA
UL 508 |
| Protective Treatment |
TC |
| Ambient Air Temp For Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temp For Op |
-13…158 °F (-25…70 °C) |
| Vibration Resistance |
7 gn 2…500 Hz)IEC 60068-2-6 |
| Shock Resistance |
50 gn IEC 60068-2-27 |
| Overvoltage Category |
Class II IEC 61140 |
| IP Degree Of Protection |
IP66 IEC 60529 |
| Nema Degree Of Protection |
NEMA 1
NEMA 12
NEMA 13
NEMA 2
NEMA 3
NEMA 3R
NEMA 4
NEMA 6 |
| Category |
21426 - 9001 K (NOT KA,KM,KX) |
| Discount Schedule |
CS1 |
| GTIN |
00785901697879 |
| Nbr. Of Units In Pkg. |
1 |
| Country Of Origin |
MX |
| Green Premium Status |
Green Premium product |
| EU RoHs Directive |
Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free |
Yes |
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Warranty |
18 months |
