| Range Of Product |
Harmony STO & STU |
| Product Or Component Type |
Touch panel screen |
| Software Designation |
Vijeo Designer |
| Operating System |
Harmony |
| Processor Name |
CPU RISC |
| Display Size |
3.4 inch |
| Display Type |
Backlit monochrome STN LCD |
| Background Colour |
Green
Red
Orange |
| Display Resolution |
200 x 80 pixels |
| Touch Panel |
Analogue |
| Backlight Lifespan |
10000 hours red
50000 hours orange
50000 hours green |
| Brightness |
8 levels |
| Contrast |
16 levels via touch panel |
| Character Font |
ASCII
Chinese (simplified Chinese)
Taiwanese (traditional Chinese)
Japanese (ANK, Kanji)
Korean |
| [Us] Rated Supply Voltage |
24 V DC +/- 20 % |
| Inrush Current |
30 A |
| Local Signalling |
Normal operation 1 LED green) |
| Power Consumption In W |
5 W |
| Number Of Pages |
Limited by internal memory capacity |
| Processor Frequency |
333 MHz |
| Port Ethernet |
10/100BASE-TX |
| Memory Description |
Application memory 16 MB
Back up of data 128 kB |

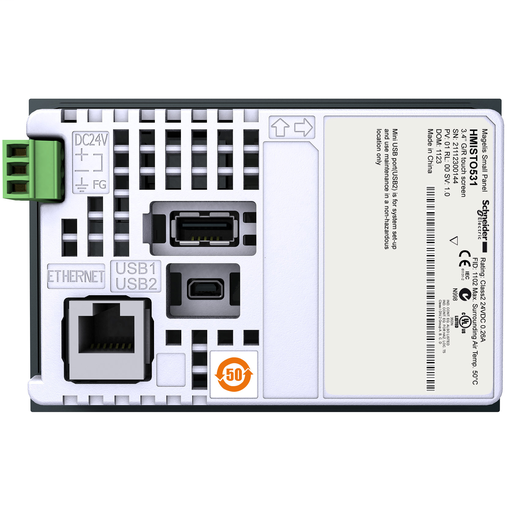

| Integrated Connection Type |
1 USB 2.0 type mini B
1 USB 2.0 type A
power supply - removable screw terminal block
1 Ethernet TCP/IP - 1 RJ45 |
| Supply |
External source |
| Realtime Clock |
Access to the PLC real-time clock |
| Downloadable Protocols |
XWAY TCP/IP
Modbus TCP/IP
Third party protocols |
| Fixing Mode |
By 2 spring clips 1.6...5 mm thick panel |
| Enclosure Material |
PPT |
| Marking |
CE |
| Immunity To Microbreaks |
3 ms |
| Standards |
IEC 61000-6-2
UL 508
EN 61131-2
UL 1604
FCC Class A |
| Product Certifications |
CULus
CE
UL Class 1 Division 2 T5
C-tick
UL Class 1 Division 2 T4A |
| Ambient Air Temp For Op |
32…122 °F (0…50 °C) |
| Ambient Air Temp For Storage |
-4…140 °F (-20…60 °C) |
| Relative Humidity |
0…90 % without condensation |
| Operating Altitude |
<= 6561.68 ft (2000 m) |
| IP Degree Of Protection |
IP20 IEC 60529 rear panel)
IP65 IEC 60529 front panel) |
| Nema Degree Of Protection |
NEMA 4X front panel indoor use) |
| Shock Resistance |
15 gn 11 msIEC 60068-2-27 |
| Vibration Resistance |
+/- 3.5 mm 5…9 Hz) IEC 60068-2-6
1 gn 9…150 Hz) IEC 60068-2-6 |
| Electromagnetic Compatibility |
Resistance to radiated electromagnetic fields 10 V/m IEC 61000-4-3 |
| Category |
22569-MAGELIS XBT-GT (AND XBT-G) |
| Discount Schedule |
MC2 |
| GTIN |
00785901516026 |
| Warranty |
18 months |
