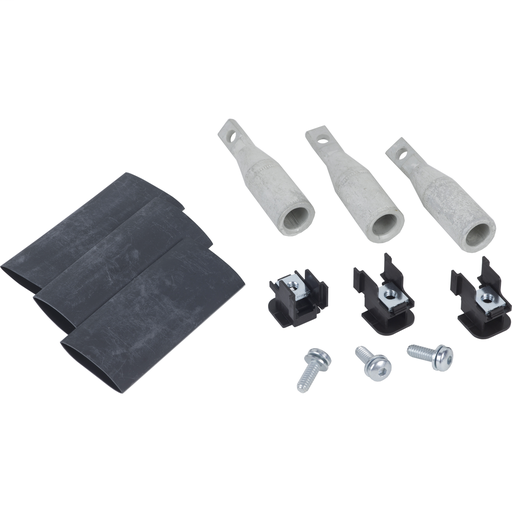

YA150HD is a PowerPact H-FRAME molded case circuit breaker, 150A, compression lug kit. This lug is for a unit mount and is made of aluminum. Certified to CSA & UL Standards. The PowerPact™ H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. Both copper and aluminum compression lug kits are available for the H-, J-, and L-frame circuit breakers. Each kit contains required insulators and all mounting hardware. Compression lugs require the long lug cover pack. The PowerPact Advantage. Proven Performance, Industry-leading circuit breaker innovation and protection for heavy-duty commercial and industrial applications. Smart, Integrated metering options provide a cost-effective solution to reduce energy consumption, optimize energy costs, and improve energy availability for your facilities. Flexible, Full range of thermal-magnetic and electronic trip molded case circuit breakers from 15 A to 3000 A, delivering the ratings, configurations, and operators for your unique applications. Simple, Common catalog numbers, standardized ratings, and a full range of field-installable accessories make product selection, installation and maintenance easier than ever. Common Design Features, Mounting holes, door trim, and handle accessories.
Add to Quote CataloguePart Number | YA150HD |
---|---|
Country of Origin | US |
UPC | 785901602989 |
UPC11 | 78590160298 |
EAN | 0785901602989 |
Availability | N |
UNSPSC | 39121601 |
ECCN | EAR99 |
HTs Code | 8536908585 |
Prop 65 | This product can expose you to chemicals including: DINP and DIDP which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
RoHS Compliant | Yes |
Discount Schedule | DE2 |
Return Indicator | Yes |
Range Of Product | PowerPact H |
---|---|
Product Or Component Type | Lug |
Accessory / Separate Part Cate | Connection accessory |
Quantity Per Set | Set of 3 |
Circuit Breaker Type | H-frame |
Product Compatibility | PowerPact H PowerPact H-Frame |
In Rated Current | 150 A |
Material | Aluminium |
Mounting Mode | Compression Unit mount |
Awg Gauge | AWG 1/0...AWG 4/0 aluminium/copper |
Tightening Torque | 79.66…90.28 lbf.in (9.0…10.2 N.m) AWG 1/0...AWG 4/0) |
Product Certifications | CSA UL |
Category | 01103-H,J,COMPACT NS UL/IEC CB ACCESS |
Discount Schedule | DE2 |
GTIN | 00785901602989 |
Country Of Origin | US |
Green Premium Status | Green Premium product |
EU RoHs Directive | Compliant |
Mercury Free | Yes |
Pvc Free | Yes |
Warranty | 18 months |
