| Range Of Product |
Harmony GTO |
| Product Or Component Type |

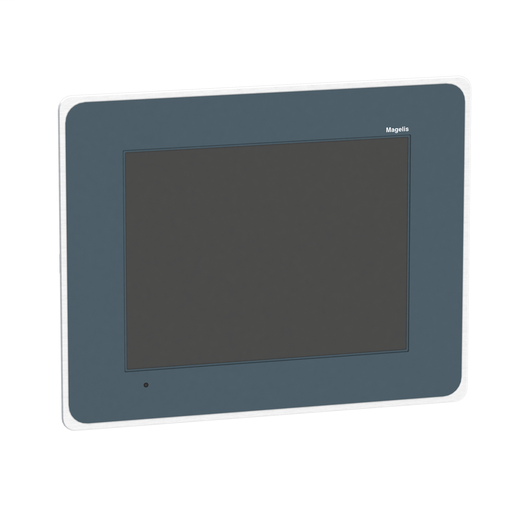

Advanced touchscreen panel |
| Display Colour |
65536 colours |
| Display Size |
12.1 inch |
| Supply |
External source |
| Battery Type |
Lithium internal RAM 100 days 5 day(s) 10 year(s) |
| Provided Equipment |
1 protective cover |
| Terminal Type |
Touchscreen display |
| Display Type |
Backlit colour TFT LCD |
| Display Resolution |
800 x 600 pixels SVGA |
| Touch Sensitive Zone |
1024 x 1024 |
| Touch Panel |
Resistive film, 1000000 cycles |
| Backlight Lifespan |
50000 hours white 77 °F (25 °C) |
| Brightness |
16 levels by touch panel
16 levels by software |
| Character Font |
Japanese (ANK, Kanji)
Taiwanese (traditional Chinese)
Chinese (simplified Chinese)
Korean
ASCII (European characters) |
| Us Rated Supply Voltage |
24 V DC |
| Supply Voltage Limits |
19.2…28.8 V |
| Inrush Current |
30 A |
| Power Consumption In W |
12 W when power is not supplied to external devices
7 W when backlight is OFF
8 W when backlight is dimmed
17 W |
| Local Signalling |
Status LED green, steady offline
Status LED green, steady operating
Status LED orange, flashing software starting up
Status LED red, steady power supply (ON)
Status LED clear, faded power supply (OFF)
COM2 LED yellow, steady data is being transmitted
COM2 LED yellow, faded no data transmission
SD card LED green, steady card is inserted
SD card LED green, faded card is not inserted or is not being accessed |
| Software Designation |
Vijeo Designer configuration software >= V6.1 |
| Memory Description |
Flash EPROM, 96 MB |
| Data Backed Up |
512 kB internal RAM SRAM) |
| Data Storage Equipment |
SD card, <= 32 GB
SDHC card, <= 32 GB |
| Downloadable Protocols |
Schneider Electric Modicon Modbus
Schneider Electric Modicon Uni-TE
Schneider Electric Modicon Modbus Plus
Schneider Electric Modicon FIPWAY
Mitsubishi Melsec third party protocols
Omron Sysmac third party protocols
Rockwell Automation Allen-Bradley third party protocols
Siemens Simatic third party protocols
Schneider Electric Modicon Modbus TCP |
| Integrated Connection Type |
COM1 serial link SUB-D 9 RS232C 2400...115200 bps
COM2 serial link RJ45 RS485 2400...115200 bps
COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI
Ethernet RJ45 10BASE-T/100BASE-TX
Ethernet RJ45 IEEE 802.3
USB 2.0 type A
USB 2.0 type mini B |
| Product Mounting |
Flush mounting |
| Fixing Mode |
by 8 nuts
by 4 L brackets |
| Front Material |
Stainless steel 304 |
| Enclosure Material |
PPT |
| Type Of Cooling |
Natural convection |
| Width |
14.13 in (359 mm) |
| Height |
11.22 in (285 mm) |
| Depth |
2.20 in (56 mm) |
| Product Weight |
6.61 lb(US) (3 kg) |
| Standards |
EN 61131-2
UL 508
IEC 61000-6-2 |
| Product Certifications |
CULus
C-tick
CE
KCC |
| Ambient Air Temp For Op |
32…131 °F (0…55 °C) |
| Ambient Air Temp For Storage |
-4…140 °F (-20…60 °C) |
| Relative Humidity |
10…90 % without condensation |
| Operating Altitude |
< 6561.68 ft (2000 m) |
| IP Degree Of Protection |
IP20 IEC 60529 rear panel)
IP65 IEC 60529 front panel) |
| Nema Degree Of Protection |
NEMA 4X front panel (indoor use) |
| Shock Resistance |
147 m/s² 3 chocks in each direction X, Y and Z EN/IEC 61131-2 |
| Vibration Resistance |
3.5 mm 5…9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2
1 gn 9…150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 |
| Resist Electrostatic Dischrg |
6 kV contact discharge IEC 61000-4-2 level 3 |
| Category |
22569 - MAGELIS XBT-GT (AND XBT-G) |
| Discount Schedule |
MC2 |
| GTIN |
03606480841712 |
| Nbr. Of Units In Pkg. |
1 |
