CT-3980/BT

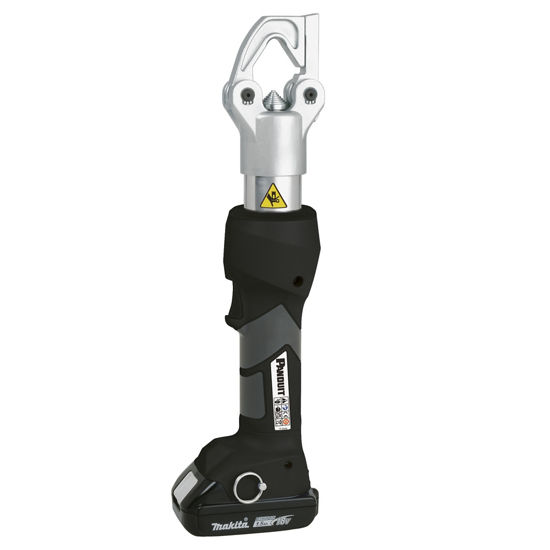

Panduit Blackfin™ CT-3980/BT Hydraulic Crimp Tool
The CT-3980/BT BlackFin® Battery Powered Crimp Tool with Bluetooth® technology crimps easily with a rotating flip-top crimp head since adapters can change out quickly. The crimp tool has a force of 6.7 tons and meets OSHA mandated electrical and mechanical product safety requirements for handheld and motor-operated electric tools.
Brand: Panduit
Add to Quote Download Spec Sheet PDFSpecifications
| Tool Type | Dieless |
|---|---|
| Aluminum Conductor Size | 6 AWG-300 kcmil |
| Copper Conductor Size | 8 AWG-600 kcmil |
| Flex Conductor Size | 8 AWG-373.7 kcmil |
| Sub Brand | BlackFin™ |
| For Use With | Panduit Compression Connectors |
| Includes | (2) 18VDC 4Ah Makita Lithium-Ion Rechargeable Batteries, (1) 120VAC Makita Battery Charger (U.S. Plug), (1) Tool Case |
| Crimp Force (ton) | 6.7 |
| Crimp Head Rotation (°) | 350 |
| Connection Type | A |
| Crimp Cycle Time (s) | 7 |
| Battery Charge Time (min) | 40 |
| Battery Type | Lithium-Ion |
| Insulated Tool Head | No |
| Jaw Opening Width (In.) | 1.8 |
| Jaw Opening Width (mm) | 45.7 |
| Overall Length (In.) | 4.9 |
| Overall Length (mm) | 125 |
| Overall Width (In.) | 3 |
| Overall Width (mm) | 75 |
| Overall Height (In.) | 16.3 |
| Overall Height (mm) | 413.5 |
| Standards Met | Meets OSHA mandated electrical and mechanical product safety requirements for Handheld Motor-Operated Electric Tools specification UL 60745-1 and CSA C22.2 No. 60745-1. |
| Product Type | Hydraulic Crimp Tool |
| Tool Configuration | In-Line Design |
| Weight (Kg) | 2.7 |
| Weight (lb) | 6 |
| Crimp Profile | Indenter |
| Base Material | Steel |
| Battery Voltage (V) | 18 |
