CT-2931/STBT

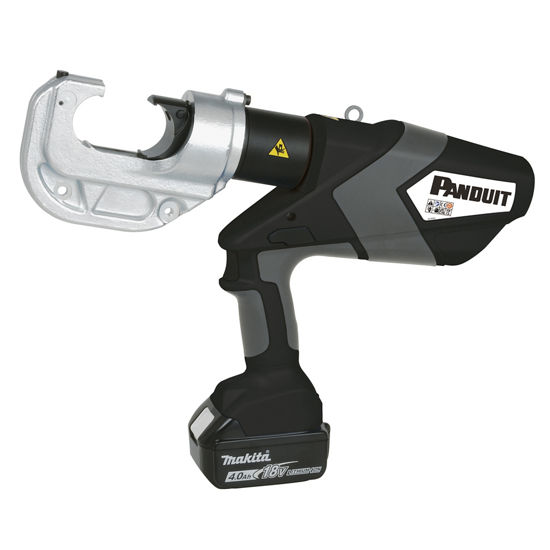

Panduit Blackfin™ CT-2931/STBT Hydraulic Crimp Tool
The CT-2931/STBT BlackFin® Battery Powered Crimping Tool with Bluetooth® technology, crimps with just the touch of a button. Wires can quickly and easily be terminate with a rotating flip-top crimp head. The crimp tool has a force of 12 tons and meets OSHA mandated electrical and mechanical product safety requirements for handheld and motor-operated electric tools.
Brand: Panduit
Add to Quote Download Spec Sheet PDFSpecifications
| Tool Type | Die Type |
|---|---|
| Aluminum Conductor Size | 6 AWG-600 kcmil |
| Copper Conductor Size | 8 AWG-750 kcmil |
| Flex Conductor Size | 8 AWG-535.3 kcmil |
| Maximum Metric Class 2r Wire Size (mm²) | 400 |
| Minimum Metric Class 2r Wire Size (mm²) | 10 |
| Maximum Metric Class 5f Wire Size (mm²) | 300 |
| Minimum Metric Class 5f Wire Size (mm²) | 10 |
| Maximum Metric Class 6f Wire Size (mm²) | 300 |
| Minimum Metric Class 6f Wire Size (mm²) | 10 |
| Sub Brand | BlackFin™ |
| For Use With | Panduit Compression Connectors |
| Includes | (2) 18VDC 4Ah Makita Lithium-Ion Rechargeable Batteries, (1) 120VAC Makita Battery Charger (U.S. Plug), (1) Tool Case |
| Crimp Force (ton) | 12 |
| Crimp Head Rotation (°) | 350 |
| Connection Type | A |
| Crimp Cycle Time (s) | 9 |
| Battery Charge Time (min) | 40 |
| Battery Type | Lithium-Ion |
| Insulated Tool Head | No |
| Jaw Opening Width (In.) | 1.65 |
| Jaw Opening Width (mm) | 41.9 |
| Overall Length (In.) | 12.8 |
| Overall Length (mm) | 324 |
| Overall Width (In.) | 3 |
| Overall Width (mm) | 75 |
| Overall Height (In.) | 16.8 |
| Overall Height (mm) | 428 |
| Standards Met | Meets OSHA mandated electrical and mechanical product safety requirements for Handheld Motor-Operated Electric Tools specification UL 60745-1 and CSA C22.2 No. 60745-1. |
| Product Type | Hydraulic Crimp Tool |
| Tool Configuration | Pistol Grip |
| Weight (Kg) | 7.2 |
| Weight (lb) | 15.9 |
| Crimp Profile | Circumferential |
| Base Material | Steel |
| Battery Voltage (V) | 18 |
