LCAX1-56-X

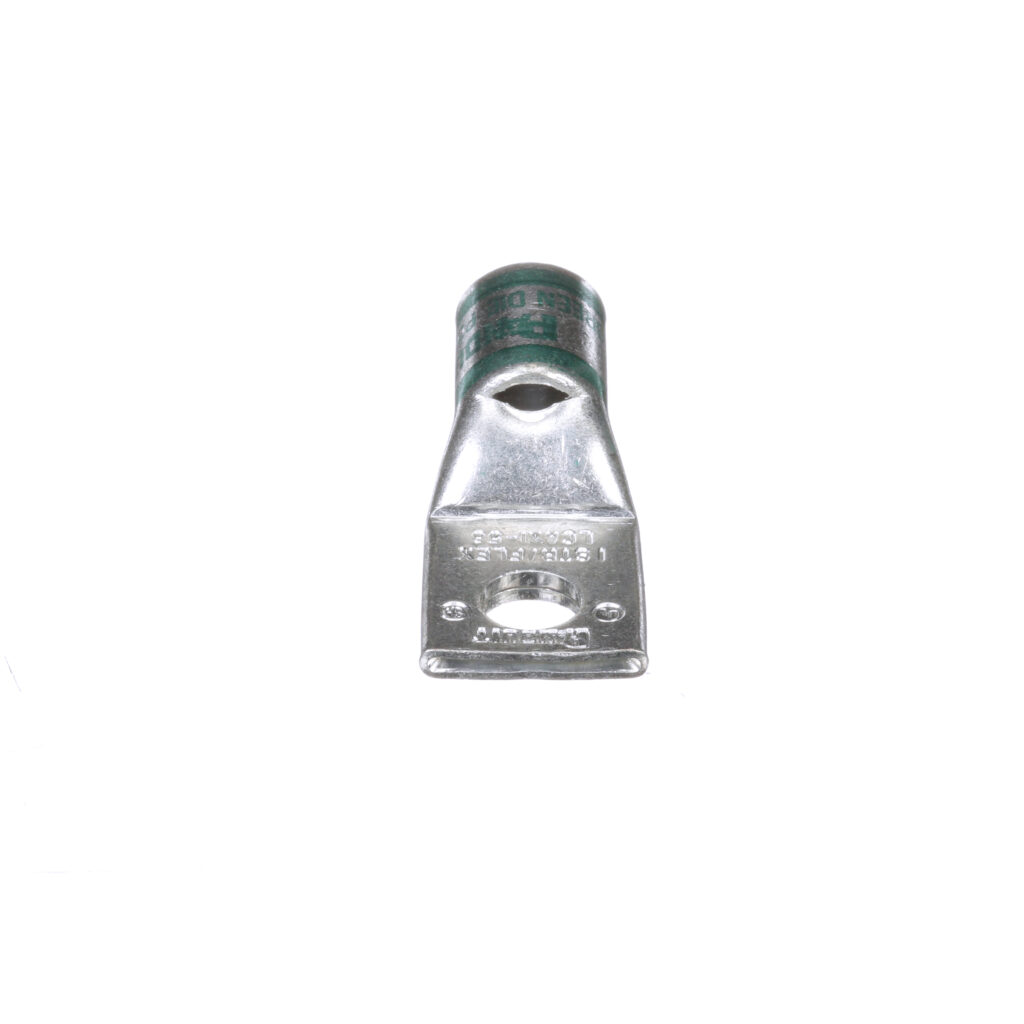

Pan-Lug™ LCAX1-56-X Comp. Lug, 1, Tin Plt Copper, Strt, One 0.31″ Stud, PK10
The LCAX1-56-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
Brand: Panduit
Add to Quote Download Spec Sheet PDFSpecifications
| Note | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
|---|---|
| Product Type | Compression Lug |
| Sub Brand | Pan-Lug™ |
| Category | Copper Compression Lugs |
| Barrel Type | Standard |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Copper Conductor Size | 1 AWG |
| Stud Hole Size (In.) | 5/16 |
| Stud Hole Size (mm) | 7.9 |
| Number of Stud Holes | 1 |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Tongue Width (In.) | 0.76 |
| Tongue Width (mm) | 19.3 |
| Tongue Thickness (In.) | 0.12 |
| Tongue Thickness (mm) | 3 |
| Barrel Length (In.) | 0.66 |
| Barrel Length (mm) | 16.8 |
| Overall Length (In.) | 1.72 |
| Overall Length (mm) | 43.7 |
| Wire Strip Length (In.) | 3/4 |
| Wire Strip Length (mm) | 19.1 |
| Maximum Voltage (kV) | 35 |
| UL Temperature Rating (C) | 90 |
| CSA Temperature Rating (C) | 90 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164, ABS approved |
| Color Code | Green |
| Panduit Die Index No. | P37 |
| Burndy Die Index No. | 11 |
| T&B Die Index No. | 37 |
| Inspection Window | Yes |
| Product Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry. |
| UPC | 07498343512 |
| Standard Package Qty | 10
— |
